Alfons Haar Tank Truck Self-Priming Vane Pump Series

Description

[tabs] [tab title=”SPECIFICATIONS”]Download FPO 65 Data Sheet PDF
Download FPO 80 Data Sheet PDF
Download FPO 100 Data Sheet PDF
Download FPQ 150 Data Sheet PDF
Download PTO-FIT Data Sheet PDF
Download FPCC 50 User Manual PDF
Download FPO 100 Operating Instructions PDF
Download FPO 65 Operating Instructions PDF

Download CMG Motors Brochure PDF [/tab] [/tabs]

ALFONS Haar – Tank Truck Self-Priming Vane Pump Range

The Alfons Haar pump is Ex II 2G cT3 CE certified, and operating without a flame arrestor is possible (under compliance of the certified ATEX conditions).

FEATURES:

• Large integrated pneumatic or mechanical by-pass valve.
• very good blow down for product change.
• excellent working life and simple service.
• PTO or hydraulic drive.

FPO 65 Vane Pump:

• Depending on selected pump size up to 940 l/min. (10 bar)
• Computer optimised 3″ to 2,5″ suction cross section for a quiet pump operation and high discharge rate.
• Ideal 3″ and 2,5″ block flange for connection of the pipework to the pump in the tank truck.

FPO 80 Vane Pump:

• Depending on selected pump size up to 1230 l/min. (10 bar)
• Computer optimised 4″ to 3″ suction cross section for a quiet pump operation and high discharge rate.
• Ideal 4″ and 3″ block flange for connection of the pipework to the pump in the tank truck.

FPO 100 Vane Pump:

• Depending on selected pump size up to 1500 l/min. (7 bar)
• Computer optimised 4″ suction cross section for a quiet pump operation and high discharge rate.
• Ideal 4″ block flange for connection of the pipework to the pump in the tank truck.

• Ideal for hydraulic drive with an efficiency of 80% and more.

FPQ 150 Refueller Vane Pump:

• Depending on selected pump size up to 4000 I/min. (8 bar)
• Optimal with integrated drive.
• Pneumatic (remote controllable) or wire spring bypass valve.
• By current modelling using numerical methods.
• High efficiency.
• Low noise emission.
• Small size.
• Light weight.

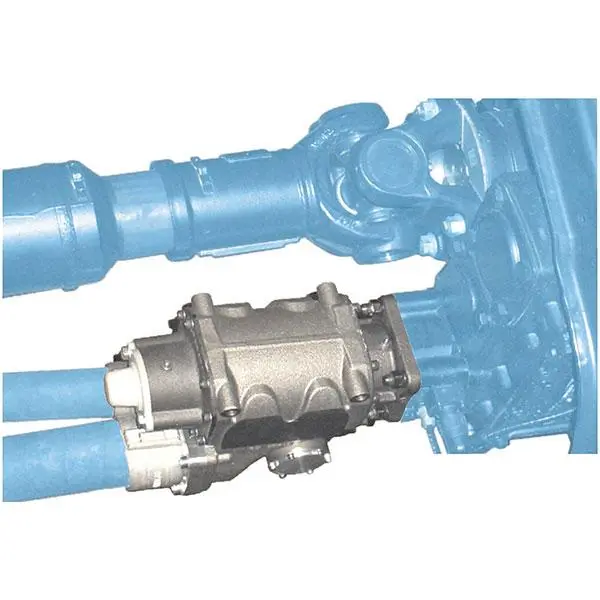

PTO-FIT Tank Truck Vane Pump:

Driven propshaftless, close-coupled directly to the PTO-gearbox.

• Capacity up to 6001/min.
• Integrated pneumatic or mechanical by-pass valve.
• One pump easily changes into both directions.
• Robust and compact design, the dimensions are similar to those of a hydraulic pump.

PDF DOWNLOADS AVAILABLE
