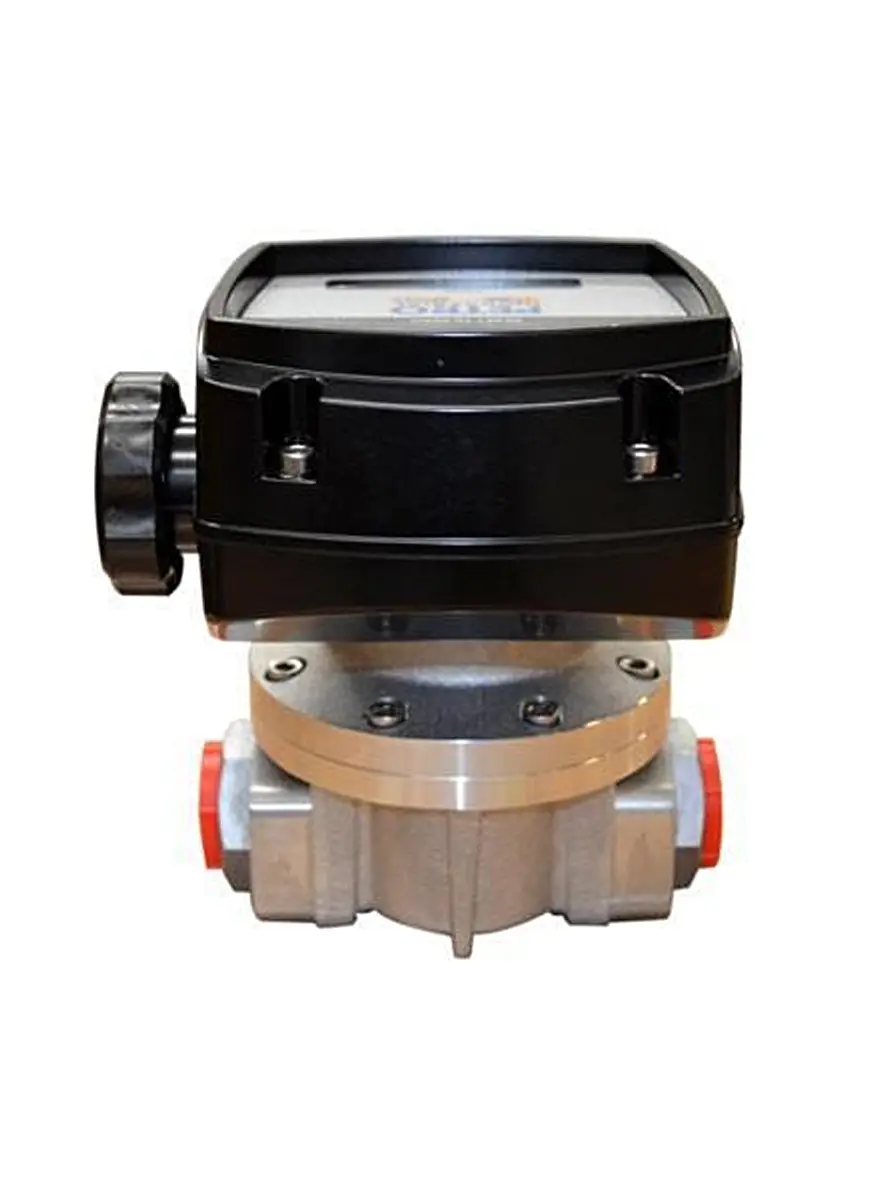

Digital Petro Flow Meter with Mechanical Register and Totaliser

Description

[tabs] [tab title=”SPECIFICATIONS”]Download Data Sheet PDF
Download Instructions Manual PDF
Download Detailed Info PDF [/tab] [/tabs]

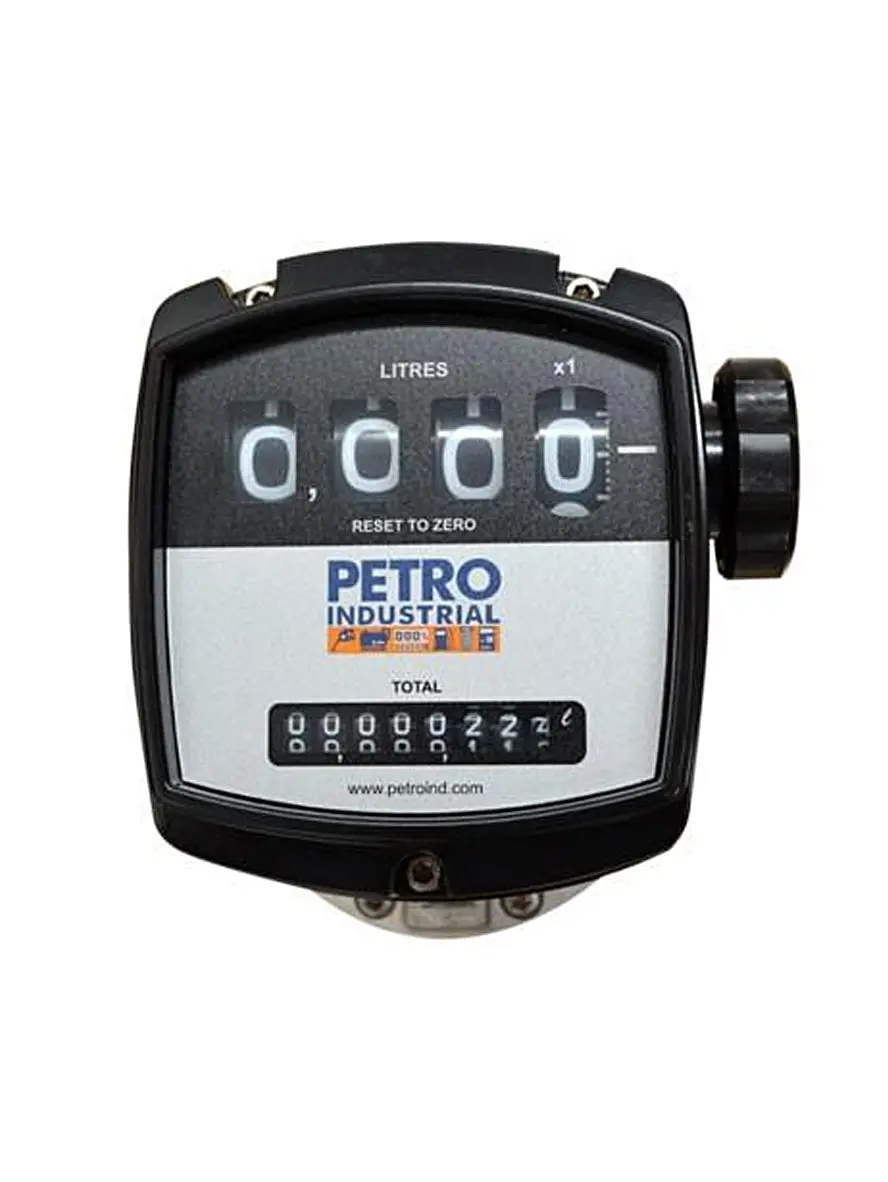

PETRO FLOW METER RANGE Scr BSP Female, 4 Digital Mechanical Register with Totaliser

4 Digital Mechanical Register with Totaliser

3 x Choices of Size – Scr BSP Female

•  DN25 (10-120lpm)
•  DN40 (10-250lpm)
•  DN50 (15-550lpm)

Among the many PD flowmeter design principals available today, the oval gear still holds a top place both in simplicity and field proven performance.

PETRO Mechanical Flow Meters are a range of oval gear flowmeters which provide high levels of accuracy & repeatability for a wide range of most clean liquids irrespective of viscosity & conductivity including fuels , oils, additives, chemicals , food bases, paints, viscous emulsions , insecticides , alcohols & solvents

• Will register flow by either being pumped or gravity fed.
• Modular process connections
• No requirement for flow conditioning
• High accuracy, repeatability & reliability
• Wide turndown (min.~max . flow)
• Ultimate rotor stability (all metal rotors)
• Dual outputs (reed & hall effect) standard
• Hyperpulse high resolution pulse output
• Hazardous area versions
• Bi-directional flow capability
• Quadrature pulse output option
• Linearity : +/-0.5% of reading
• Repeatability : +/-0.03% repeatability
• Temperature : – 20~+120ºC (-4~250ºF)
• Materials : aluminum (316 stainless steel available as an option)
• Optional pulse outputs

Options include:

• Modular process connections
• LCD totaliser
• LCD flow rate totaliser
• LCD two stage batch controller
• Intrinsically Safe (I.S.) instruments
• 4~20mA, scaled pulse & alarm outputs
• Integral mechanical totaliser / batch register
• Quadrature pulse output

Contact PETRO industrial’s team of bulk fuel storage and dispensing specialists for more information today!
