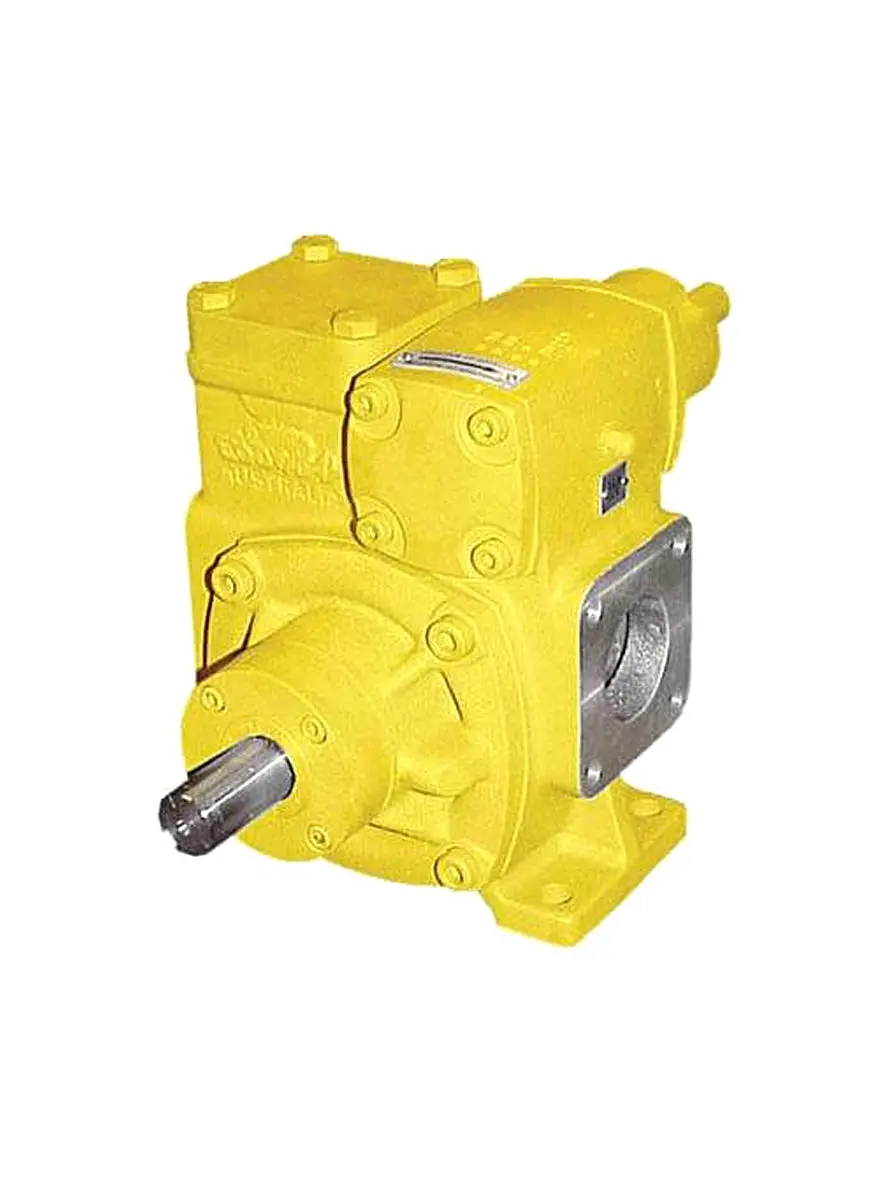

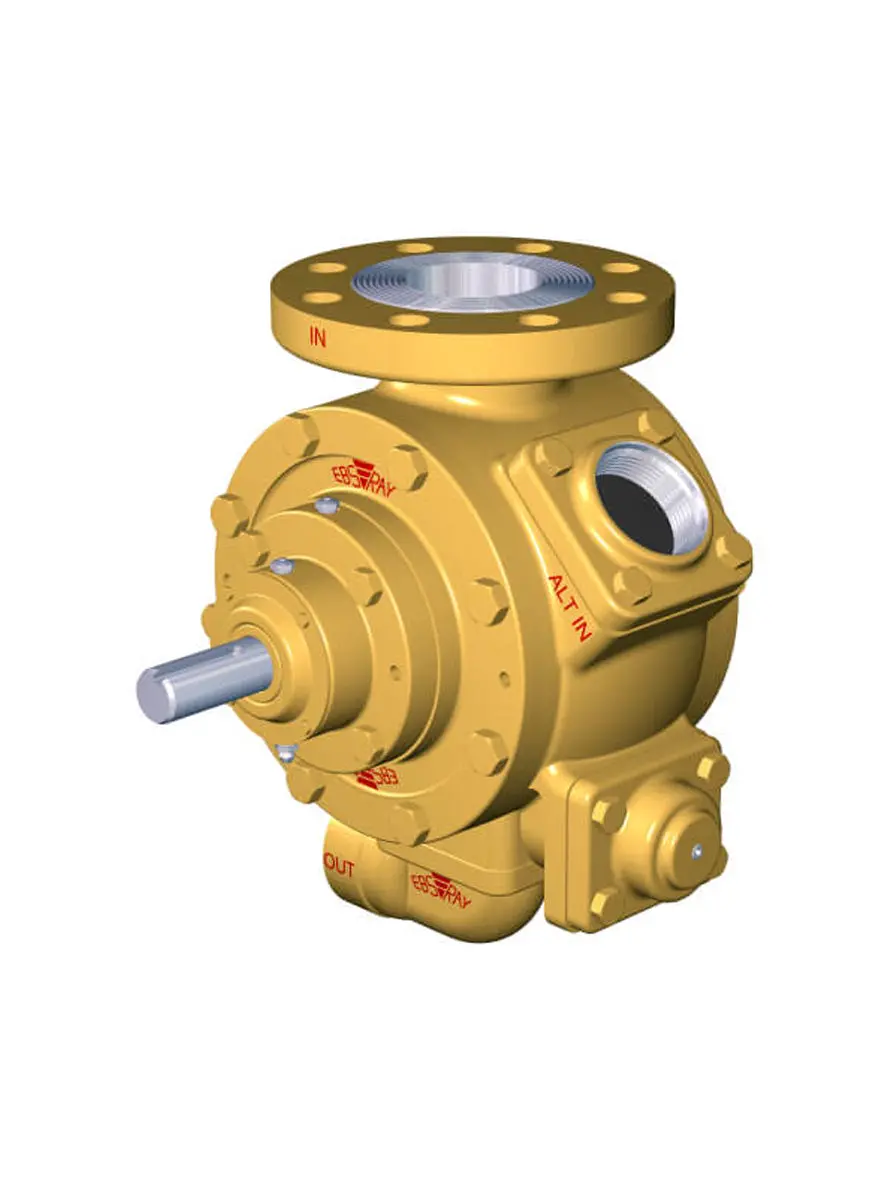

EBSRAY PUMPS
POSITIVE DISPLACEMENT SLIDING VANE PUMPS
Designed and precision built for efficient transfer of a wide variety of lubricating and non-lubricating liquids and capable of handling a broad range of viscosities.
- Designed and precision built to optimise all the advantages of the sliding vane principle.
- Automatic compensation for vane wear assures the pump will maintain its superior priming characteristics and line stripping ability over a long service life.
- Smooth output flow ensure quiet operation within the NPSH range.
- The pumps can be direct-coupled to synchronous speed motors.
FEATURES:
- Replaceable wearing components.
- Balanced mechanical seals, shaft lip seals.
- Positive axial location of rotor.
- Multiporting configurations.
- Double-ended shaft (some models).
- Bypass valve – integral adjustable.
- Lightweight or standard.
- Compact and robust.
PERFORMANCE:
- Flows to 6,360Lpm.
- Pressures to 1,100 kPa.
- Viscosities to 10,000 cSt.
- Temperatures to 100°C.
FIELDS OF APPLICATION:
Road tanker mounting and fixed installation for loading and unloading of Petroleum products such as: petrol, distillate, aviation fuels, lubricating oils, LPG, chemicals solvents and edible oils.
|
DIESEL DRIVEN PRODUCT RANGE: |
|||
|
Description |
Service |
Casing Material |
Flow Rate |
|
Model V20 T21H with Kohler KD350 engine |
Refueling |
Aluminium
|
340 lpm
|
|
Model V20 T21H with Kohler KD440 engine |
Refueling |
Aluminium |
400 lpm
|
|
Model V25 T83 with Kohler 15LD500 engine |
Refueling |
Aluminium |
530 lpm
|
|
Model V30 T24 with Kohler 15LD500 engine |
Refueling |
Cast Iron / Aluminium |
730 lpm
|
|
Model V35 T24with Kohler KD425-2 engine |
Refueling and Unloading
|
Cast Iron / Aluminium |
920 lpm
|
|
Model V40 with Kohler KD425-2 engine |
Refueling and Unloading |
A395 Ductile Iron
|
1100 lpm
|
|
Model V40 with Kohler KD625-2 engine |
Refueling and Unloading |
A395 Ductile Iron
|
1600 lpm
|
| ELECTRIC DRIVEN PRODUCT RANGE: | ||||
|
Description |
Service |
Casing Material |
Flow Rate |
Max. Diff Pressure |
|
Model V20 T21H with 4.0kw 6 pole motor |
Refueling
|
Aluminium
|
400 lpm
|
300 kPa
|
|
Model V25 T83 with 5.5kw 6 pole motor |
Refueling
|
Aluminium
|
560 lpm
|
300 kPa
|
|
Model V30 T24 with 7.5kw 8 pole motor |
Refueling
|
Cast Iron / Aluminium
|
730 lpm
|
350 kPa
|
|
Model V35 T24H with 7.5kw 8 pole motor |
Refueling and Unloading
|
Cast Iron / Aluminium |
970 lpm
|
250 kPa
|
|
Model V35 T24 with 11kw 8 pole motor |
Refueling
|
Cast Iron / Aluminium |
940 lpm
|
450 kPa
|
|
Model V35 T24 with 15kw 8 pole motor |
Refueling
|
Cast Iron / Aluminium |
920 lpm
|
675 kPa
|
|
Model V40 T55P1 with 15kw RX87 geared motor |
Unloading and Transfer
|
A395 Ductile Iron
|
1400 lpm
|
400 kPa
|
Contact PETRO industrial’s team of bulk fuel storage and dispensing specialists for more information today!
