Description

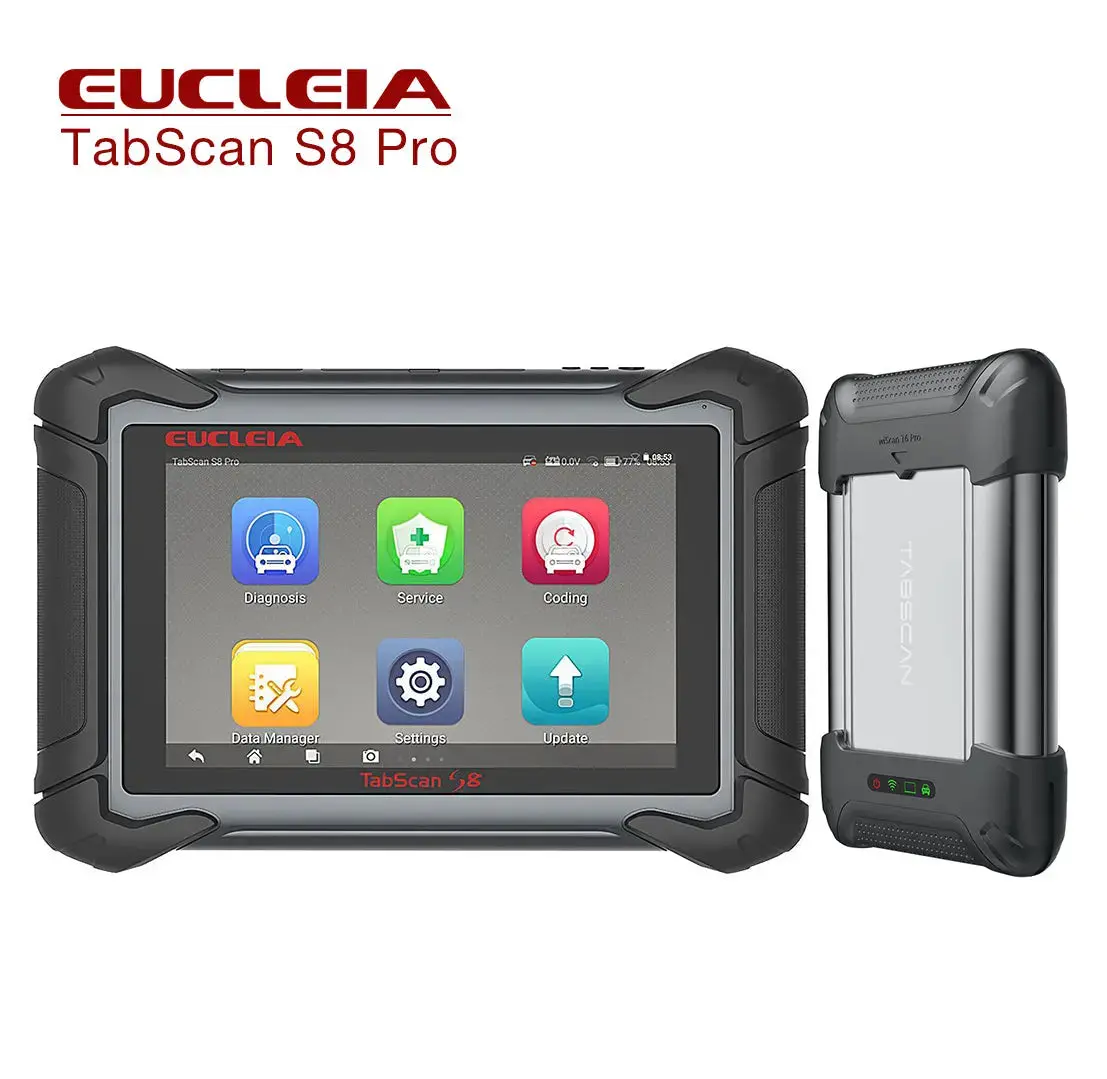

EUCLEIA TabScan S8 Pro Automotive Intelligent Dual-mode Diagnostic Scanner System Free Update Online

EUCLEIA Tabscan S8 Pro is an innovative high-end diagnostic scanner which invest one million RMB in mold, strict IP65 industrial design enhance the stability. Combined the third-party diagnostic device,J2534 and PDU programming tools which achieved the multi-purpose, multi-connected, powerful dual-mode vehicle diagnosis. With the TabScan S8 Pro coming into market,it identifies new diagnostic experience and cost performance, it is the best choice for working shops, garages,auto service stations.

Top 4 Reasons to Get EUCLEIA TabScan S8 Pro

1. Supports pathfinder and piwis 3 officially, which means it can support the original diagnostic feature for Porsche Gen 3 and new Landrover. It can also support online programming, customer need have online account.
2. With T6 Pro device which supports DOIP protocol with most of  the newest and original manufacturer diagnostic functions.
3. Free Update Online for 18 Months
4. Multi-language: English (Default), Russian, French, German, Polish, Swedish, Portuguese, Japanese, Korean, Arabic, Burmese
Please pass us serial number to change language if you need.

EUCLEIA Tabscan S8 Pro Features:

1.Support automobile full system diagnosis
2.Support Porsche PIWIS III Diagnosis & Online programming
3.New DoIP technology, perfectly adapt with Pathfinder(Land Rover, Jaguar),Benz new models
4.With 13 maintainence special functions
5.Support VW group hidden function activation
6.Support J2534,PDU,RJ45,voltage programing etc.
7.Support phone APP(OBDII+Service)
8.Combined high-end table and VCI, extraordinary diagnostic performance
9.On-click update

EUCLEIA TabScan S8 Pro Support Systems

1. Engine control module trouble codes reading and clearing2. Transmission module trouble codes reading and clearing3. Brakes trouble codes reading and clearing4. Air conditioning trouble codes reading and clearing5. Central electrics trouble codes reading and clearing6. Radio tuner trouble codes reading and clearing7. Parking assistance trouble codes reading and clearing8. ABS trouble codes reading and clearing9. SRS airbag trouble codes reading and clearing10. Immobilizer trouble codes reading and clearing11. Main body trouble codes reading and clearing12. Navigation system trouble codes reading and clearing etc.

EUCLEIA Tabscan S8 Pro Supports Functions:

1. Action Test2. Read and Clear DTC Codes3. Display Live Data Stream in Graph4. Read Freeze Frame5. Read ECU information6. Turn off MIL Warning Light

EUCLEIA Tabscan S8 Pro Special Functions:

 1. ABS Bleeding support2. EPB Reset3.Oil Service Reset4.CKP Learning5.Throttle Reset6.SAS Reset7. Immobilizer (Read PIN Code)8. DPF Reset9. Battery Matching10. TPMS11. CVT Reset12. RCMM13. SRS Reset

EUCLEIA Tabscan S8 Pro Supports Hidden Function Activate for the following car brands:

1. Audi2. Volkswagen3. Skoda4. Seat

EUCLEIA Tabscan S8 Pro Support Car Models:

Asian:
Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Maruti, TATA, Isuzu, Infiniti, Kia, Lexus, Mahidra, Mazda,Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Scion, Ssangyong, Subaru, Suzuki, Toyota.  European:
Audi, Abarth, Alfa-Romeo, BMW, Benz, Citroen, Dacia, Fiat, Jaguar, Lancia, Land Rover, Mini, Opel, Peugeot, Porsche,Renault, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW, VW CV.  USA:
Chrysler, US Ford, GM, Jeep, Chevrolet, Cadillac, Lincoln, Dodge, Buick.

Brand	Models	Software
TOYOTA	TOYOTA, LEXUS, SCION	GTS
HONDA	HONDA、ACURA	i-HDS
VOLVO	VOLVO	VIDA
VW	VW、Audi、Seat、Skoda、Bentley、Lamborghini	ODIS, ODISE
JLR	Jaguar、Landrover	Pathfinder, SDD
Ford	Ford	Forscan
MAZDA	MAZDA	Forscan
GM	GM	GDS2DPS
Mercedes	Smart, Maybach, Benz, Sprinter	Xentry DTS Vediamo
BMW	BMW,Mini	ISTAD Esys ISTAP Winkwp
Porsche	Porsche Gen 3	PIWIS3

EUCLEIA Tabscan S8 Pro Parameter:



CPU	ARM Cortex-A17,1.8G,Quad-core
Platform	Rockchip RK3288W
OS	Android 6.1
RAM	DDR3L 4GB
Storage	eMMC 32GB
Dispaly	IPS,8 inch LCD display Resolution: 1280×800 Brightness: 350cd/m2
Touch Screen	G+FF, 10-point touch, COF, frame fit, 2.5D
SD card	External, maximum support 64GB
WIFI	WiFi wireless internet access 2.4G/5G(802.11a/b/g/n)
Camera	Rear 8 megapixel, auto focus, 2.2F, flash
Audio	0.8W dual channel amplifier output 3.5 audio headphone port input
HDMI	HDMI video output 1080P, HDMI 1.3c, HDCP
RJ45	Gigabit network port Network adaptation
Charging interface	Type-C USB
USB port	USB Host  High speed 480Mbps
Connection method	Bluetooth V4.0 high speed
Vehicle communication interface	VCI BOX T6，DB15
Protocols	Compatible SAE-J2534-1&SAE-J2534-2 ISO-9141 K-Line ISO-14230 K-Line ISO-15765 K-Line ISO-11898 DWCAN SAE-J1850-VPW（GM Class2） SAE-J1850-PWM（FORD SCP） SAE-J2411 Single Wire CAN（GMLAN） SAE-J2610 SCI（Chrysler） SAE-J2740 GM ALDL SAE-J2809 (HONDA DIAG-H) VAG TP16 CAN VAG TP20 CAN（SAE J2819） VAG KW81（SAE J2818） BMW DS2 FORD UBP



Eucleia Tabscan S8 Pro Package List:

1pc x Eucleia Tabscan S8 Pro Main Unit
1pc x Wiscan T6 Pro
1pc x adapter Fiat-3
1pc x adapter Nissan-14
1pc x adapter KIA-20
1pc x adapter Honda-3
1pc x adapter Honda-17
1pc x adapter Mazda-17
1pc x adapter BMW-20
1pc x Main Test cable
1pc x OBDII Adapter
1pc x T6 Pro USB Cable
1pc x Plastic case
1pc x User’s Manual NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.
