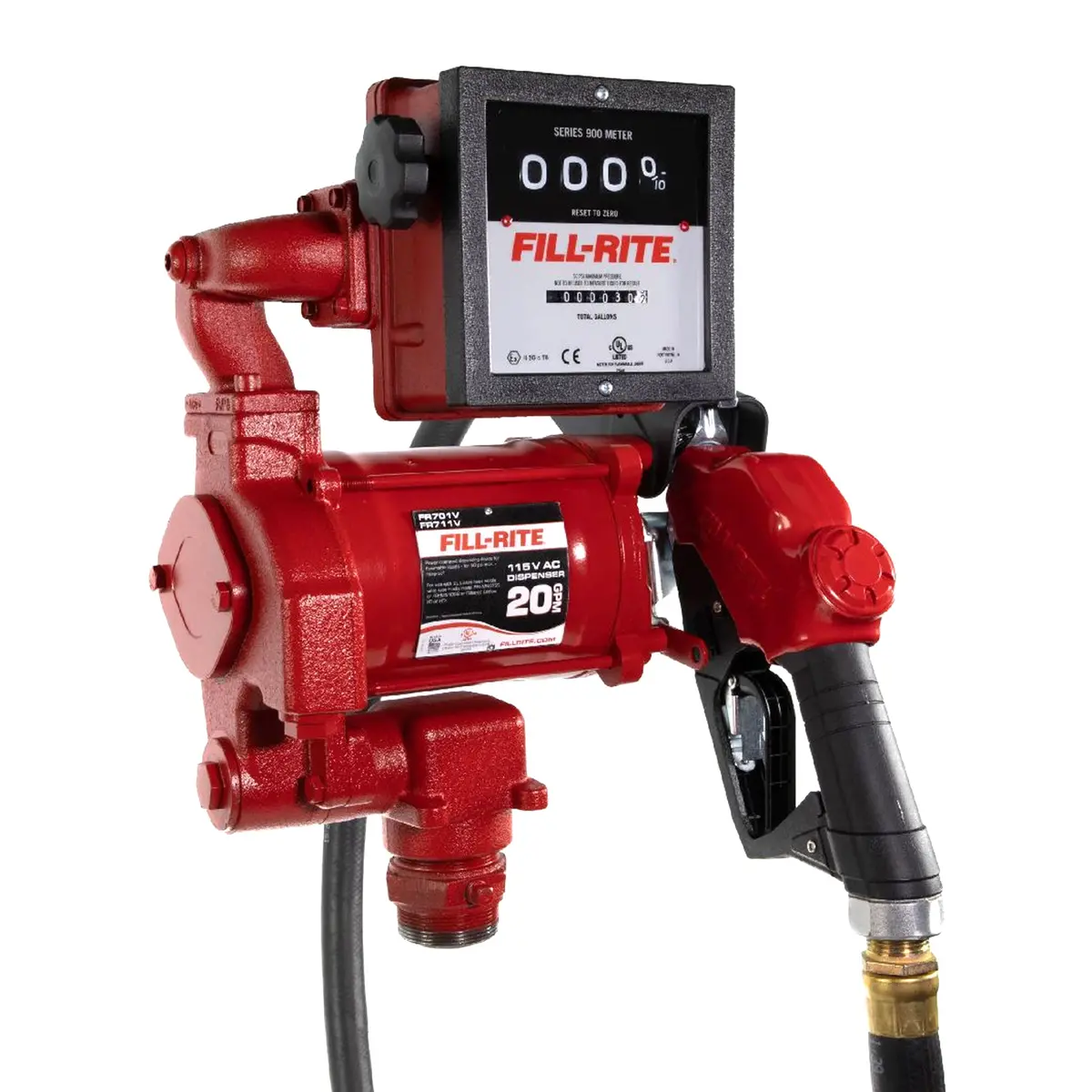

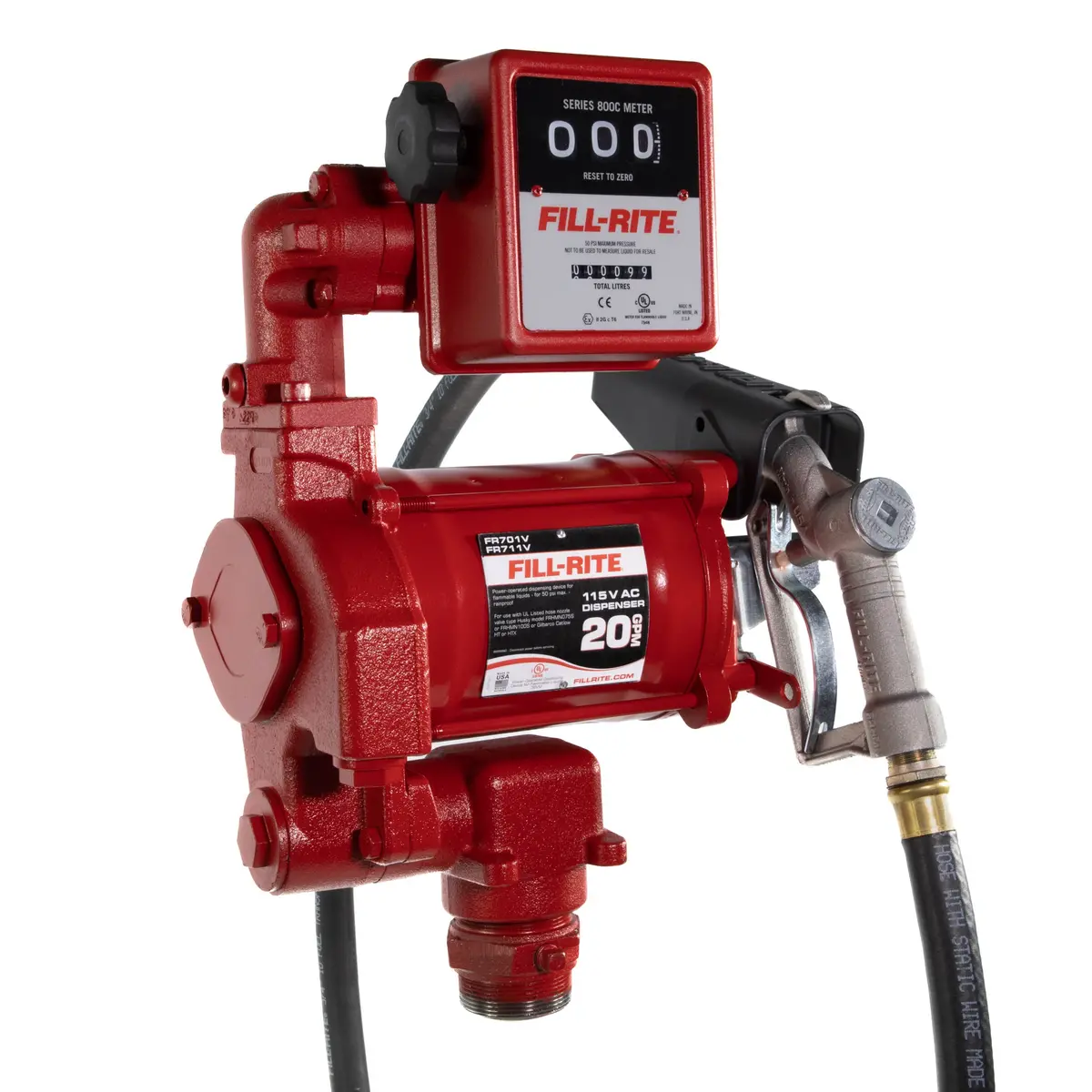

Fill-Rite FR700 Series 240V AC Fuel Transfer Pump – 75 LPM, Bung-Mount Design

Description

[tabs] [tab title=”SPECIFICATIONS”]700-SERIES Manual

700-SERIES DataSheet [/tab] [/tabs]

This model is a 240V AC, 75 LPM, heavy-duty fuel transfer pump. Fill-Rite’s 700 Series of heavy-duty fuel transfer pumps are built to last with cast-iron construction and rotary vane technology, which maintains peak performance over time.

FEATURES:

• Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
• High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 75L per minute, perfect for filling large equipment with fuel tanks sized at 75-302L
• Stationary Tanks — powered by a 230V AC motor and equipped with a 50.8mm bung mount, this pump is ideal for wiring to a standard 230 volt AC electrical supply and installing onto stationary aboveground tanks
• Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
• Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
• Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
• Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment.

PERFORMANCE:

• Max Flowrate: 75 Lpm
• Power Type: 240V AC
• Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Stoddard Solvents
• Inlet Size / Connection / Thread: 25.4mm / Female / BSPP
• Outlet Size / Connection / Thread: 25.4mm / Female / BSPT
• Mounting Size / Thread / Type: 50.8mm / BSPT / Bung Mount
• Duty Cycle (min): 30 min on / 30 min off
• Motor Power (HP): 0.33
• Max Current (A): 2.4 A
• Suction Lift (mm): 4572
• Dry Vacuum (mm Hg): 279.4
• Discharge Head (mm): 16154.4
• Strainer Mesh Size (Micron): 40 x 40 x .010
• Max Discharge Pressure (PSI): 23 PSI
• Viscosity Range (cSt): 0.38 – 2.4

DIMENSIONS:

• Assembled Product Height x Width x Depth (mm): 317.5 x 368.3 x 159
• Assembled Product Weight (kg): 16.7
• Package Height x Width x Depth (mm): 260.3 x 522.2 x 496.8
• Gross Weight (kg): 23.8
