High-Flow LS Series Intake Manifold for LS1, LS2, and LS6 Engines – Includes MAP Sensor Port, Fuel Rail Integration, and Throttle Cable Bracket

Description

LS1 LS2 LS6 92mm Intake Manifold MAP Sensor Port Fuel Rail Throttle Body Cable Bracket Black

Features:
Part Type: Intake Manifolds, Throttle Body, Fuel Rail Kit
Product Line: Bull Boost Fabricated Intake Manifolds
Engine Block Style: Stock/OEM standard deck

Intake Manifold Height:8.267inch
Injection Style: Multi-port
Basic Operating RPM Range: 2,200-6,800
Intake Section Included: Complete
Injectors Included: No
Fuel Rails Included: Yes
Aftermarket Fuel Rail Required: Yes
Supplemental Bosses Machined: Yes
Supplemental Boss Quantity: Four
Runners Included: Yes
Runners Removable: No
Plenum Material: Aluminum
Base Material: Aluminum
Finish: Bead Blasting Black Anodized

Notes: Fits cathedral port cylinder heads. Mounting flange contains extra holes that are used in the manufacturing process; These do not affect performance or reliability since LS intake manifolds use individual port seals rather than a traditional flat gasket. Includes runner o-rings and throttle body o-ring.

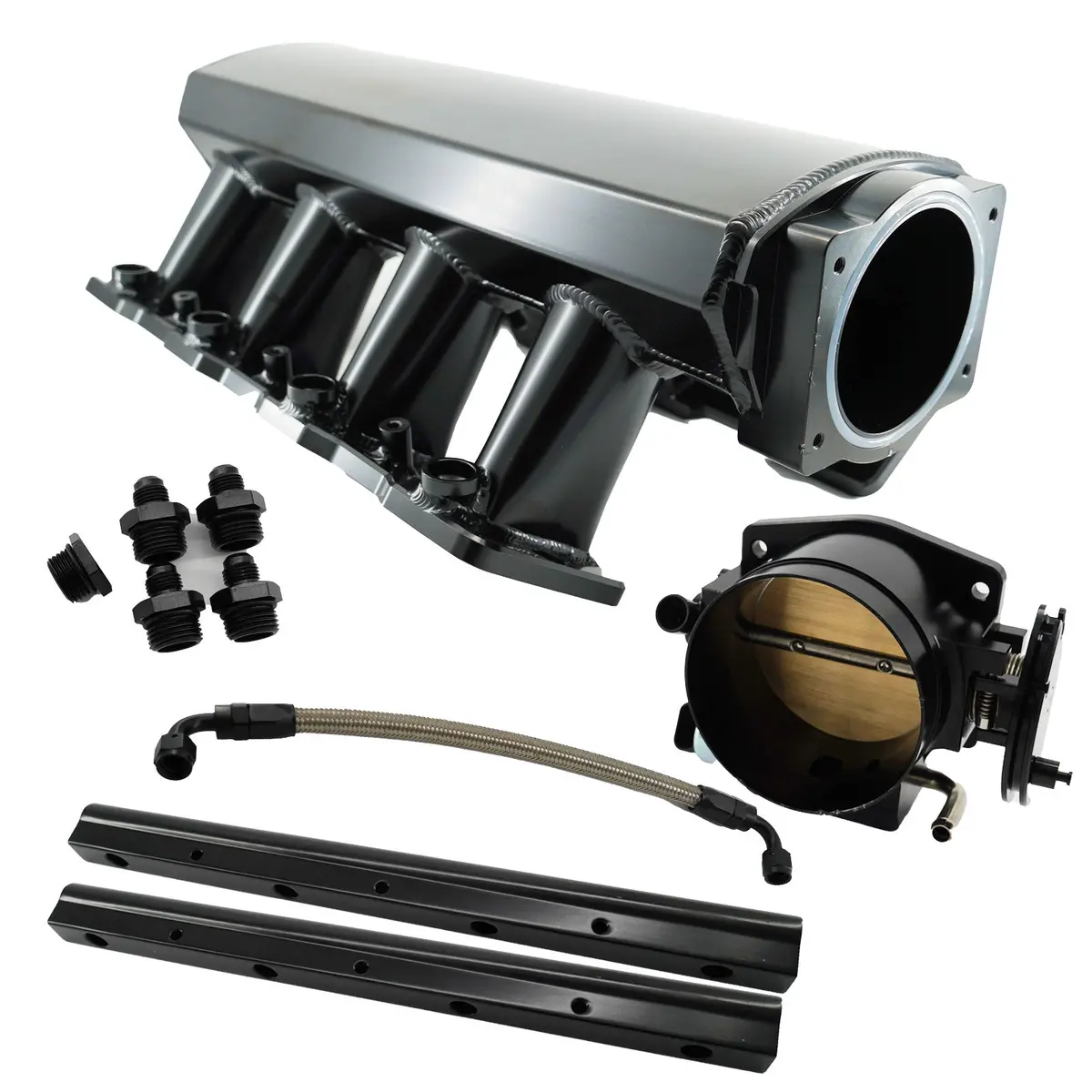

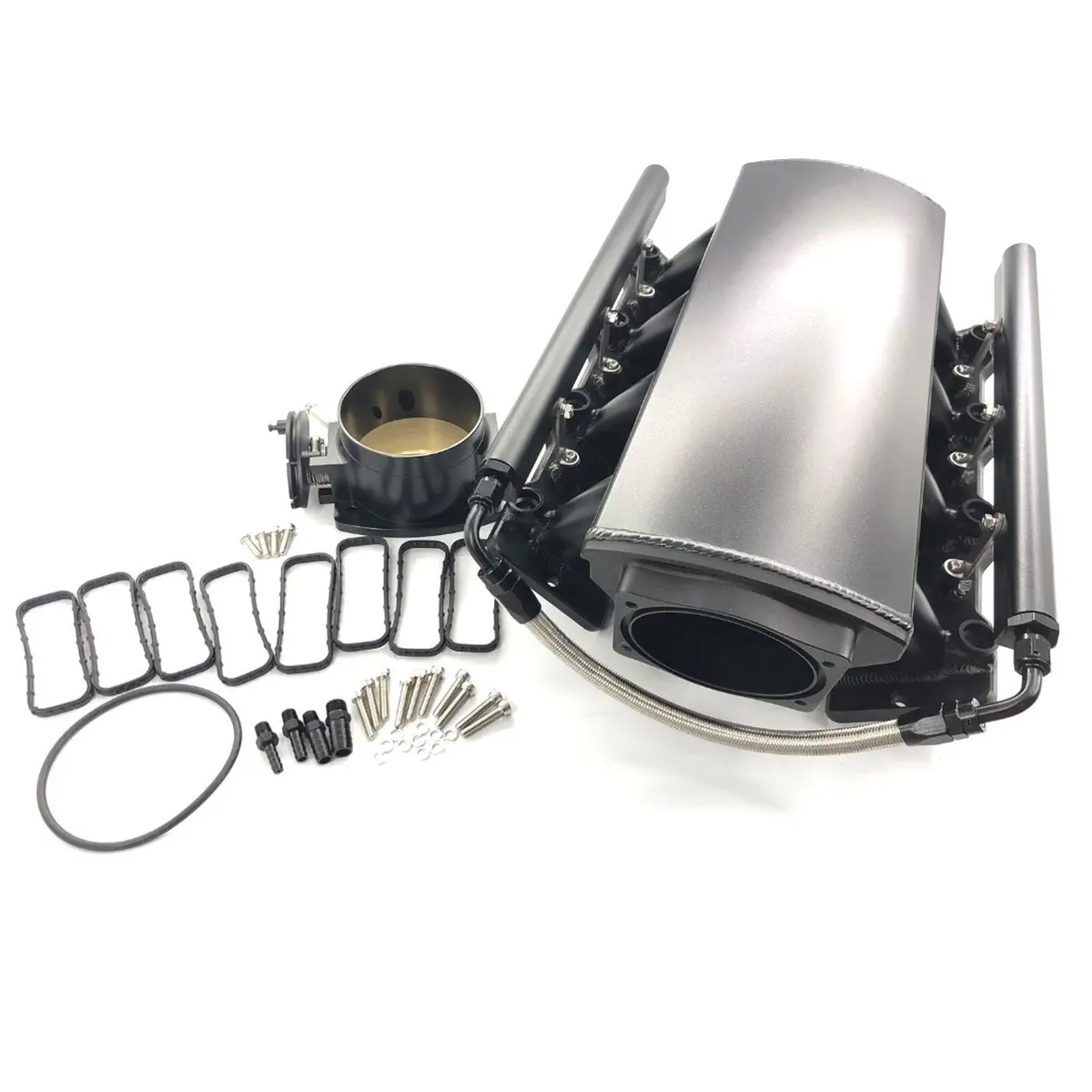

Package Contents:
1*intanke manifold
2*fuel rail
1* fuel crossover line

1*92mm Throttle Body

1 Set of throttle bracket
gaskets and other fitting hardware
