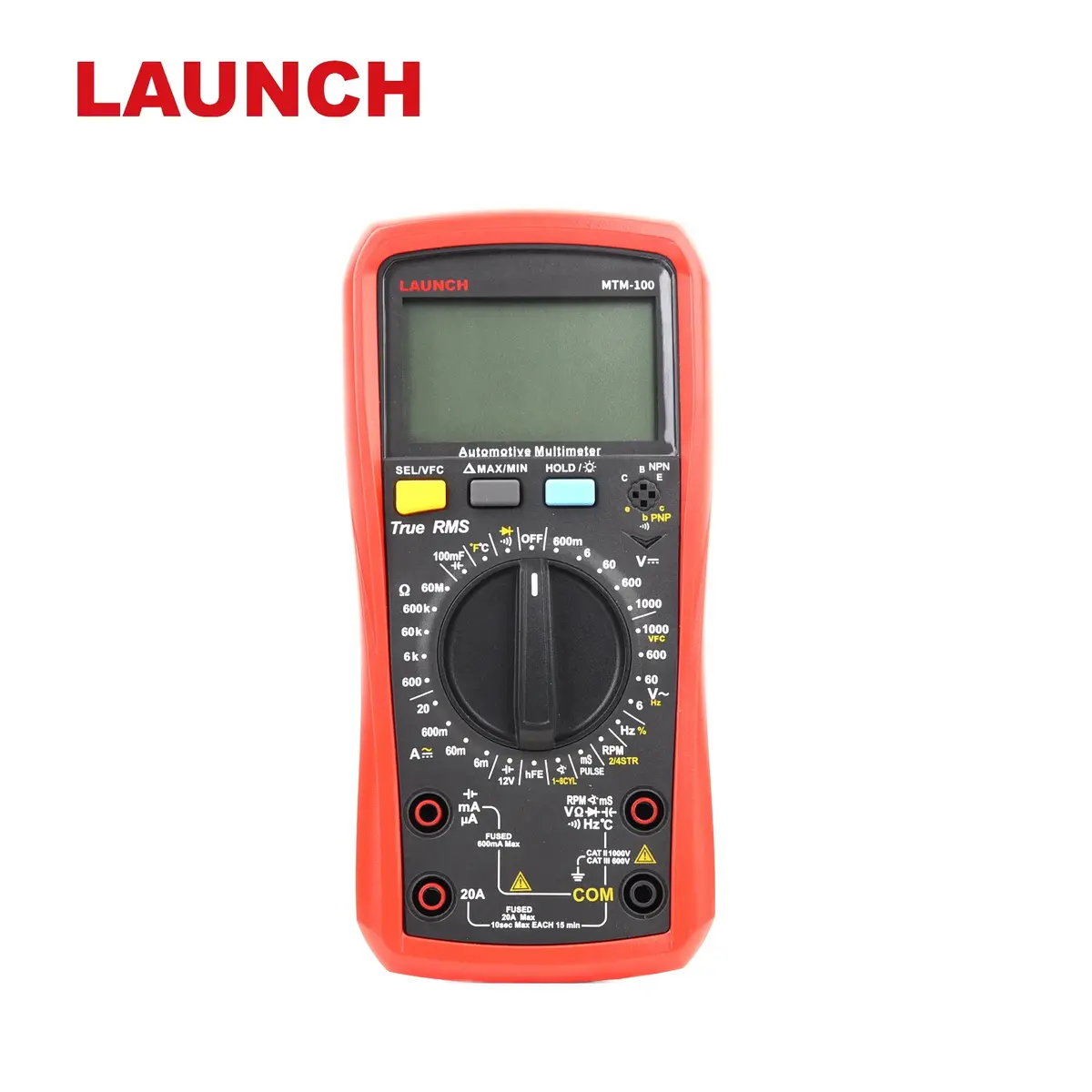

Launch MTM-100 Multi-functional Automobile Multimeter
MTM-100 Multimeter
Multi-functional Automobile Multimeter with advanced vehicle troubleshooting, equipped with 6000 counts display and the ability to test pulse width and 12V battery test.
Features
- True RMS automotive multimeter with high reliability and safety.
- Display with large digital screen.
- Microcontroller data processing and high resolution A/D converter.
- Full range of overload protection.
- Measure AC/DC current and voltage, Resistance, Capacitance, Diode/Transistor, Circuit On/Off, Temperature/Frequency, Dwell angle 1-8CYL, RPM 2STR/4STR, Pulse width and 12V battery test, VFC Low-pass filtering, Maximum and minimum value/Relative value etc.
Specifications
- Item: MTM-100
- DC Voltage: 600mV/6V/60V/600V/1000V ±(0.5%+3)
- AC Voltage: 6V/60V/600V/1000V ±(0.8%+3)
- AC Current: 6mA/60mA/600mA/10A(20A for 10s max)±(1.0%+8)
- DC Current: 6mA/60mA/600mA/10A(20A for 10s max)±(0.8%+8)
- Resistance: 600Ω/6KΩ/60KΩ/6MΩ/60MΩ ±(0.8%+3)
- Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF ±(3%+10)
- Frequency: 10Hz – 10MHz ±(0.1%+5)
- Pulse Width 999.9mS: ±(1.5%+10)
- Display count: 6000
- Power: AAA 1.5V*2
