Launch X-431 ImmoPad SmartLink C V1.0 – Key Programming and Advanced Vehicle Diagnostic Device

Description

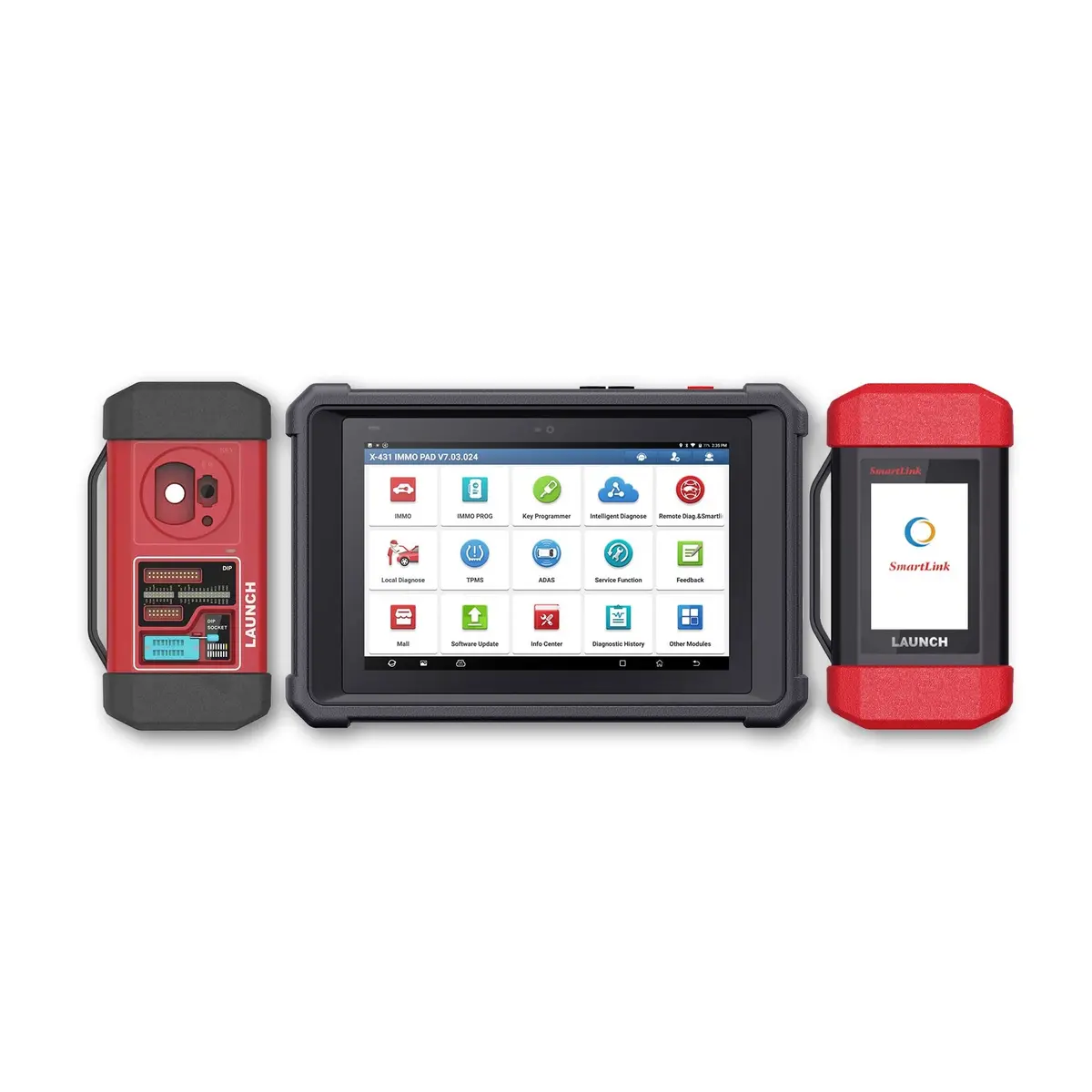

Launch X-431 IMMO PAD All-in-one Key Programming & Advanced Diagnostic Tool

The Launch X-431 IMMO PAD is a professional automotive diagnostic platform running Android 7.1, powered by an octa-core 2.0GHz processor with 4GB RAM and 64GB storage. Features include:

• 10.1″ sunlight-readable Gorilla Glass display (1920×1200 resolution)
• IP65-rated water and dust resistance
• Dual-band Wi-Fi for reliable connectivity
• Smartlink VCI supporting CAN/CANFD/DoIP/J2534/D-PDU/RP1210 protocols

Diagnostic Capabilities

1. All systems OE-Level diagnostics for over 110 vehicle models.

2. Exceptional full functionality includes comprehensive OBD II diagnostics, bi-directional control, ECU coding & programming, etc.

3. Support CAN/CANFD/DoIP communication protocols and J2534 communication standards.

4. Exclusive Smartlink remote diagnosis.

5. 39 advanced service functions.

6. Pre-scan and post-scan diagnostic report.

7. Expand diagnostic coverage via “Mall”.

8. Optional ADAS calibration function with the X-431 ADAS calibration tools.

9. Optional TPMS function with X-431 TSGUN.

Advantages

1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).

2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.

3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.

4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.

5. Supports BMW E chassis 8HP gearbox ECU program wiping.

6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU anti-theft data erase.

7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clon

Technical Specifications

IMMO PAD Tablet

• Processor: 2.0GHz Octa-Core
• OS: Android 7.1
• Memory: 4GB RAM
• Storage: 64GB
• Battery: 9360mAh
• Display: 10.1”Camera Front 8MP, Rear 13MP
• Interface: TYPE A *1 & TYPE C*1
• Dimensions: 320 × 211 × 46mm

SmartLink VCI

• Display: 3.97-inch TFT
• Operating Voltage: DC 9V-36V
• Memory: 256MB
• Storage: 8GB
• Communication: Bluetooth (local), Ethernet (remote)

X-PROG 3

• Interfaces: DB26, DB15
• Input Voltage: DC12V
• Input Current:  500mA

We parallel import this unit, please keep the SN secure from others.

NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.
