Description

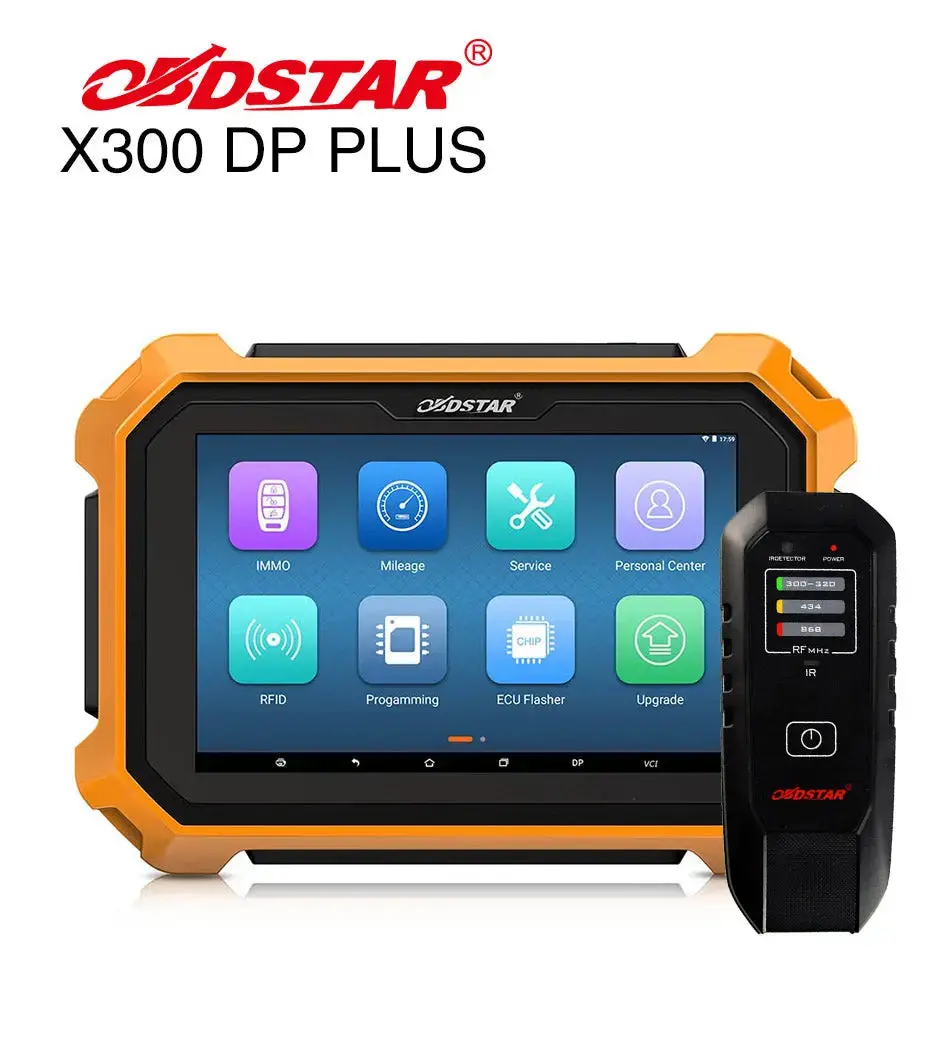

OBDSTAR X300 DP PLUS A Full Version Support ECU Programming for Toyota Smart Key

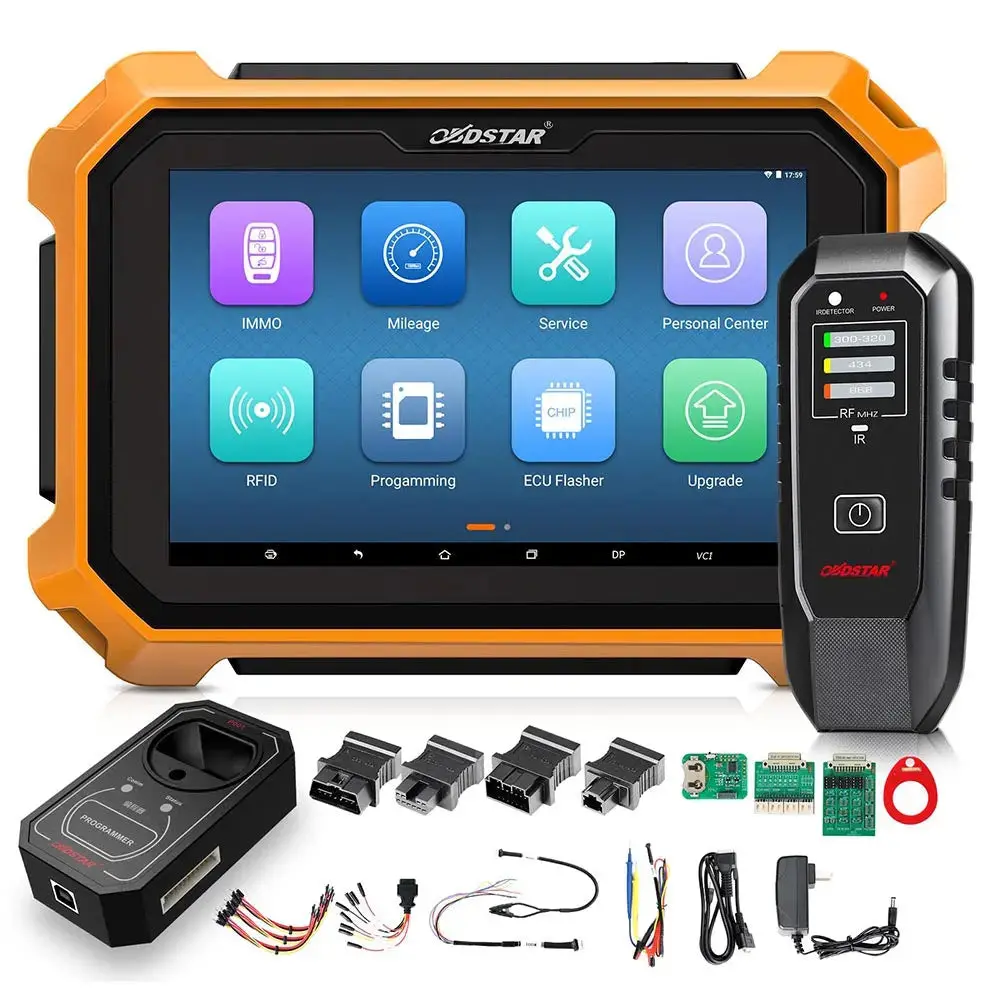

OBDSTAR X300 DP Plus A Configuration:Immobilizer + Special function (EEPROM + Key Renewing) Adapter (P001 programmer+C001 circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable +Toyota smart key Emulator) +others (Ignition coil + Remote tester)
It doesn’t support the following car models: DAIHATSU, PROTON, MAHINDRA, MARUTI, TATA, HOLDEN, LADA, PERODUA, IRAN
OBDSTAR X300 DP Plus A Configuration Hardware Advantages:
> Built-in VCI box, communication more stable
> 8-inch touchscreen, more intuitionistic
> Can be charged directly via OBD interface
> Practical and high-end gift box
>Industrial design with silicone case
>Back bracket design: Can propone the steering wheel or stand on the table, easier to operate
> With 4 Toyota simulation keys (the fifth is coming soon)
> 3 in 1, P001 programmer: combined with EEPROM adapter + RFID adapter+ Key Renew adapter
> Add the clip of reading SOP 8PIN EEPROM
> Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)
> OBDSTAR X300 DP Plus A Configuration Software Advantages:
> Add “Help “functions: Contain built-in testable vehicle models, > upgrade announcement, features, help notes and wiring diagrams, etc.
> Carlist: can directly get on the device
> Upgrade Announcement: all details are available on the device
> Customers can look up the features or uniquely support functions  on the device
> Help notes: built-in help notes for each model or function
> Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient
OBDSTAR X300 DP Plus A Configuration Technical Parameters
> Operation system: Android 5.1.1
> CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
> Battery: 3700mA, rechargeable polymer lithium battery
> Extension memory card: 32G Micro SD (TF) card supported
> Memory capacity:1GB
> Storage capacity: 32GB
> LCD: 8.0 inch
> LCD resolution: 1280*800
> Touch screen: Capacitive touch screen
> Camera: 5 mega rear-view camera
> Wi-Fi: supported
> Dimension: 254mm*174*mm*35mm

NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.
