Self-Bunded Adblue Storage Tank – 5000L, 10000L & 20000L Capacities

Description

[tabs] [tab title=”SPECIFICATIONS”]

AdBlue tank Data Sheet

PETRO Tank Collection Catalogue 2025

Operations Manual

Quality Assurance Brochure

3000L GA

5000L GA

10,000L GA

20,000L GA

[/tab] [/tabs]

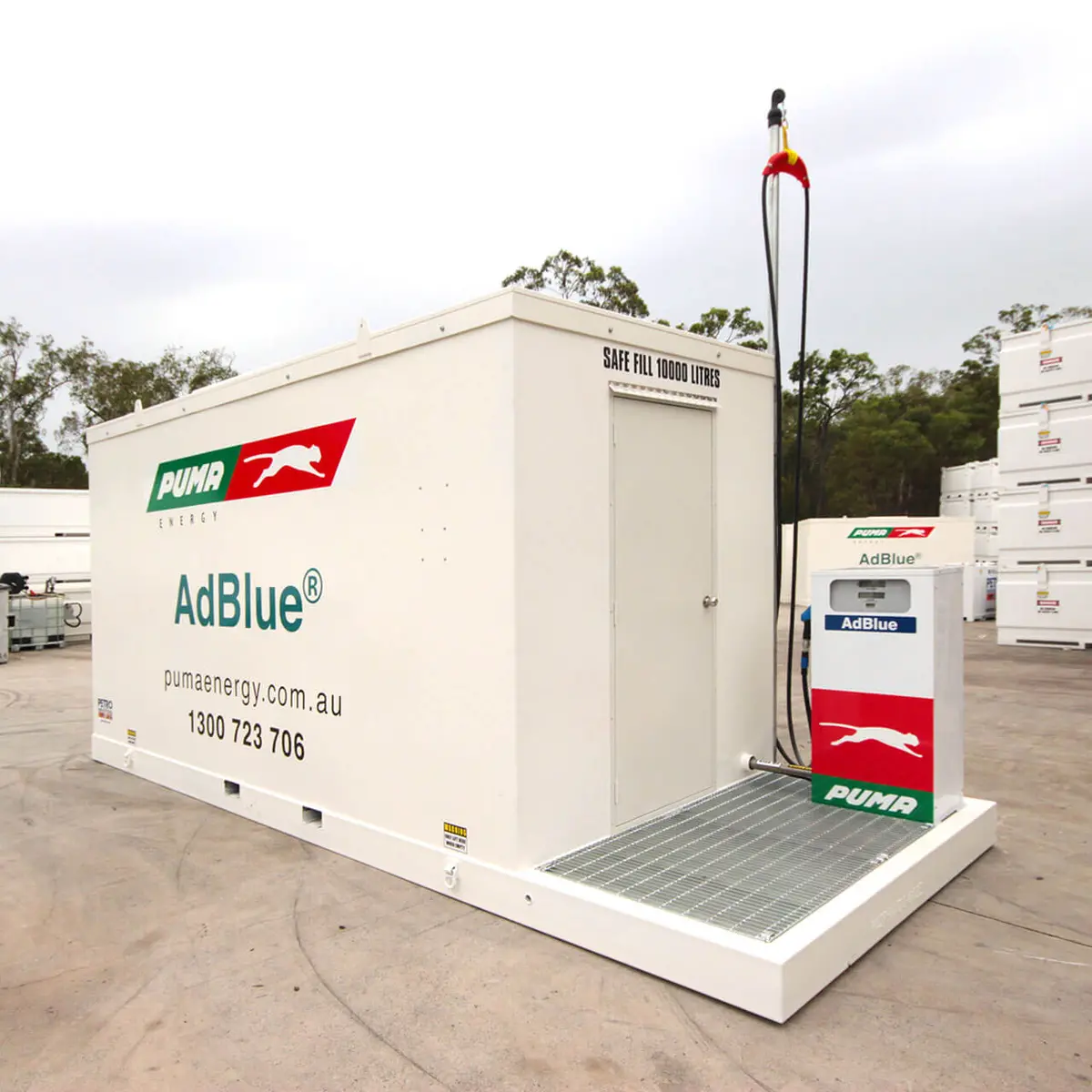

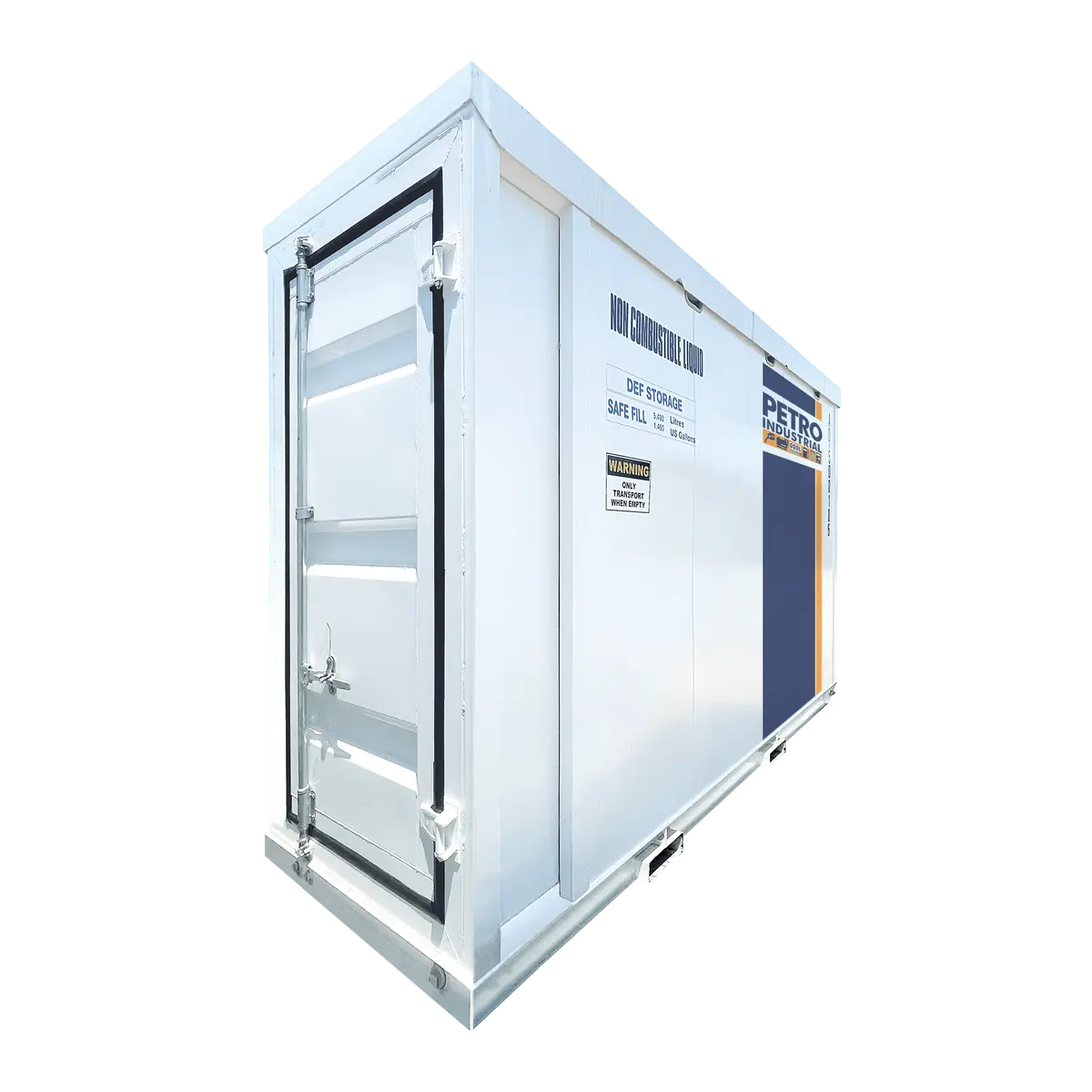

AdBlueⓇ(DEF) Tank Self Bunded.

Self Bunded, Tank in Tank Design. Full Steel Secondary Tank – fully hydrostatically tested to ensure it will hold the liquid in the event of a breach in the primary tank.

• Fully Hydro Tested Secondary Tank.
• 304 Stainless Steel Inner Tank and Wetted Parts.
• Bunded Pump Bay Housing with Personal Door Access.

FEATURES:

• Fully Insulated Design – designed to ensure your Diesel Exhaust Fluid liquids remains at the optimum temperature.
• Options for Air Conditioning or Heating for Extreme climatic regions.
• Roof mounted bund inspection hatch / tank access hatch. The roof mounted bund inspection hatch also allows access to the working parts of the system including the tank fill system / valving and the tank suction system.
• Primary tank is securely positioned within the secondary tank by way of engineered guides fabricated into the floor and heavy duty tie down straps.
• Removable Roof for ongoing maintenance access to inner tank.
• 3mm Thick Steel Secondary Tank with RHS structural support.
• Fully removable primary tank.
• Roof / Lid of the tank is fully sealed to prevent the ingress of vermin / snakes.
• Secondary Tank is fully hydrostatically tested to ensure the integrity of the design in the event of loss of containment of the primary tank.
• Mechanical Overfill Protection Valve.
• Integrated Forklift Pockets and Lashing / Lifting Lugs.
• Choice of Submersible or Suction Pump integration.
• Suitable for Retail or Commercial site applications – a slimline design is available for forecourt applications.
• Both Fill and Suction Lines are fully welded 304 Stainless Steel thus reducing any possible leak points and risk of corrosion over time.
• Front fill point is bunded in accordance with the requirements of AS1940 (min 15L).
• Aesthetic Engineered Finish – Clean Side Profile – perfect for sign writing to your specific site / company branding requirements.
• DN50 (2”) 304 Stainless Steel Fill Line with Camlock Fitting / Isolation Valve / Non-Return Valve – option for ToDo Fill Fitting.
• DN50 (2”) 304 Stainless Steel Suction Line with Isolation Valve.
• Industrial Quality, secure, lockable hinged personal access door.
• Ability to mount dispensing and metering equipment within the tank wall / structure for easy customer dispensing access.

View the full range of Self Bunded Tanks manufactured by PETRO Industrial today!

Contact PETRO industrial’s team of bulk fuel storage and dispensing specialists for more information today!
