Self-Bunded Petro-Store Tank – 5,000 to 22,000 Litre Capacity

Description

[tabs] [tab title=”Videos”][/tab] [tab title=”SPECIFICATIONS”]

AS Letter of Confirmation

PS Store Data Sheet

PETRO Tank Collection Catalogue 2025

Operations Manual

PS5.5 GA

PS11 GA

PS16 GA

PS22 GA

Quality Assurance

[/tab] [/tabs]

PETRO STORE – Self Bunded (Double Wall) Small Foot Print Tank Range

An innovative small footprint, full height pump bay storage tank perfect for home base refuelling.

FEATURES:

• PUMP BAY – Lockable full height pump bay housing for secure storage of dispensing equipment
• COMPLIANCE – Designed and built in accordance with AS1940, AS1692 and AS1657
• BUND – Galvanised grated bunded area with drain
• FILL POINT – DN50 (2″) Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm
• SUCTION POINT – DN50 (2″) Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.
• SPARE SUCTION – Spare DN25 (1″) Suction Outlet
• SPARE FITTINGS – Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices
• MANWAY – 600mm dia manway with internal ladder
• DIPSTICK – Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting
• INTERSTITIAL DIP – Anodised aluninium interstitial dipstick with brass lockable dipstick cover fitting
• INTERSTITIAL VENT – Interstitial emergency vent
• VENT – Primary tank free air vent
• DECALS – Statutory safety decals
• FORKLIFT TYNES – forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site
• LIFTING LUGS – certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site.  The lifting lugs are NOT certified to lift the tank with fuel.
• HOSE OUTLET – letterbox style secure weatherproof hose inlet / outlet assembly
• PAINT –  Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um.

PRODUCT RANGE:

CODE	CAPACITY	SAFE FILL LEVEL	LENGTH (mm)	WIDTH (mm)	HEIGHT (mm)	WEIGHT

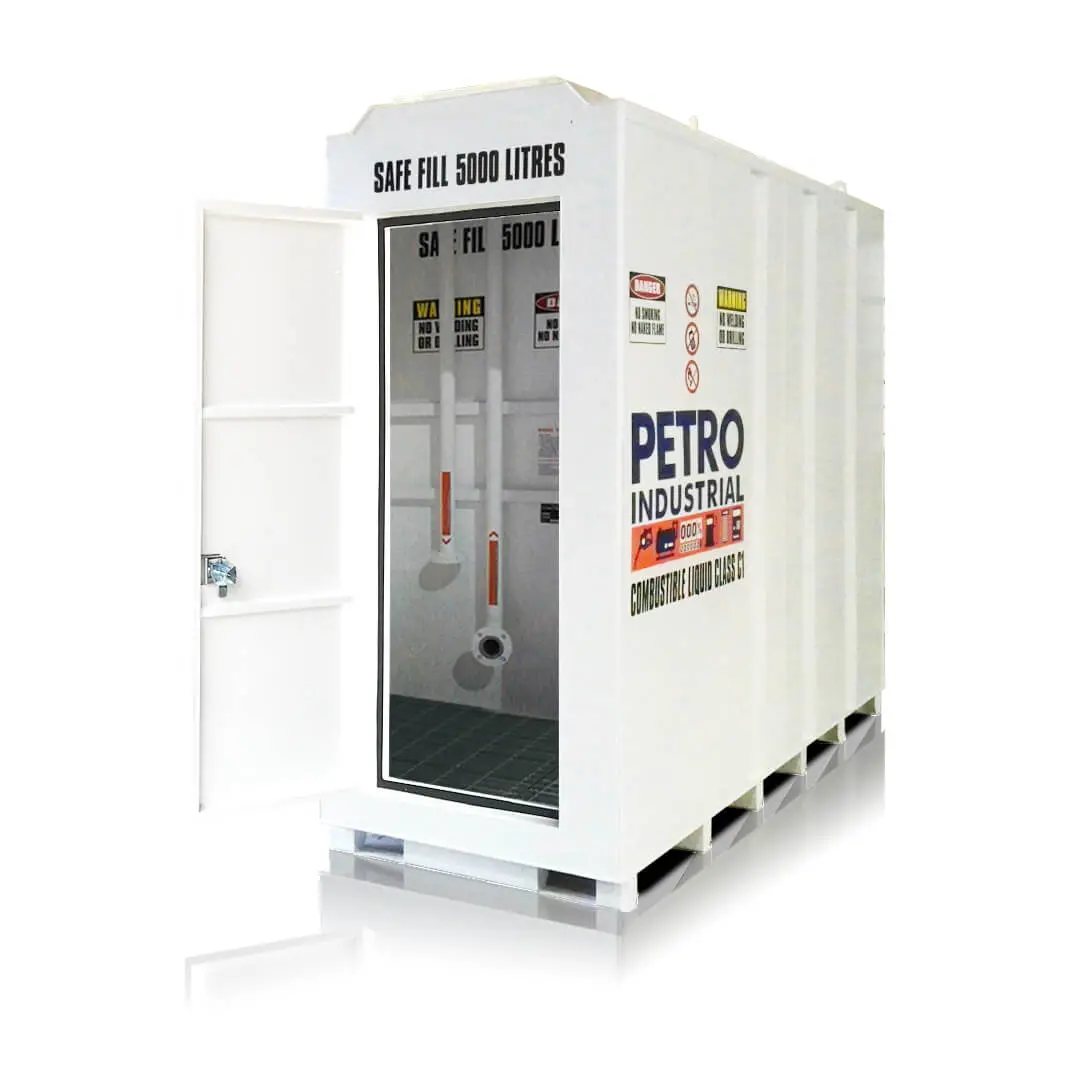

PS5.5	5,500L	5,000L	2950	1140	2550	1670KG
PS11	11,000L	10,000L	2950	2300	2550	3100KG

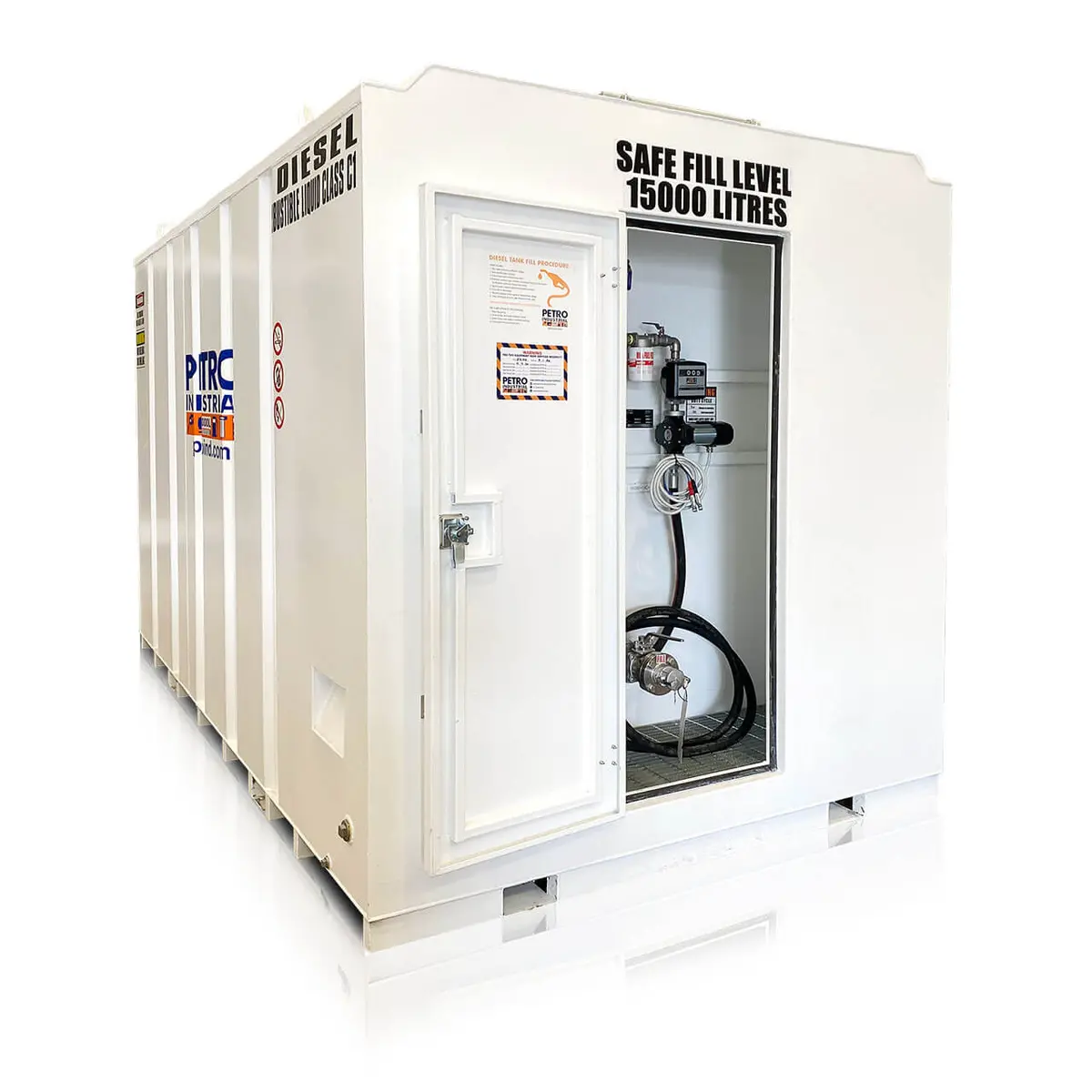

PS16	16,000L	15,000L	3950	2300	2550	3800KG
PS22	22,000L	20,000L	4950	2300	2550	4500KG

View the full range of Self Bunded Tanks manufactured by PETRO Industrial today!

Contact PETRO industrial’s team of bulk fuel storage and dispensing specialists for more information today!
