Name: TCS-682 Precision Piston Flow Meter Series
Brand: Total Control Systems (TCS)
SKU: TCS-682
Availability: InStock

Description

[tabs] [tab title=”SPECIFICATIONS”]Download Data Sheet PDF
Download Manual PDF [/tab] [/tabs]

TCS 682 Piston Meter Series

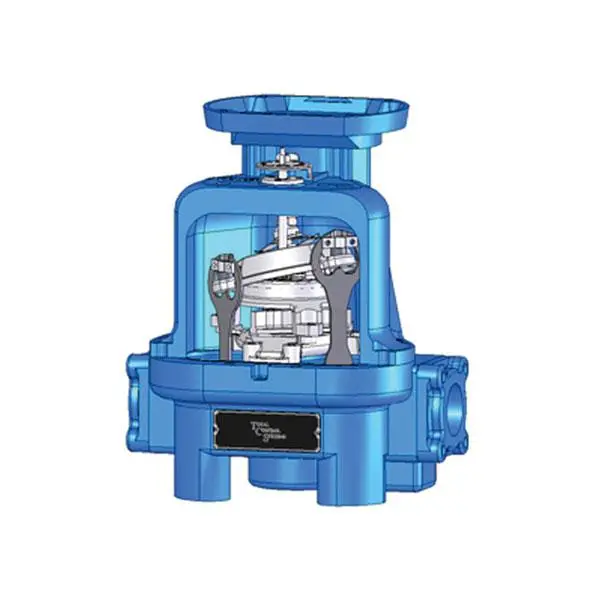

The 682 series piston flow meter is a true positive displacement flow meter that has an inline design consisting of three (3) reciprocating pistons operating within their respective measuring chambers, where each piston works in a manner similar to an automobile engine.

The pistons are fitted to a wobble plate, which has a shaft extending from its upper surface and a valve pivot attached beneath it. The valve pivot drives a sliding valve from piston to piston as a known amount of product flows through each cylinder bore, controlling the sequence of events in a smooth mechanical motion.

FEATURES:

Meets NIST, NMI, OIML, SABS and many other international weights and measures certifications.
Superior accuracy over the entire flow range.
Wide viscosity range – up to 50,000 SSU (11,000 CPS).
Low maintenance.
Long service life.
75 years of proven performance and acceptance.
Industry leading 10 year warranty.

SPECIFICATIONS:

Design: reciprocating three (3) piston.
Size: 40nb (1 1/2”) flange connection.
Type: SP, SPA, SPD, AF and SS.
Flow range: 0.2 to 50 GPM (0.76 to 190 LPM).
Linear accuracy capable of: +/- 0.1% over flow range.
Repeatability: 0.01% over 250:1 turndown.
Pressure: 150 PSI (10.5 BAR).
Temperature: – 40 to 160°F (- 40 to 71°C).
Material: Aluminum, Ductile iron and Stainless Steel.
Seals: Viton®, Teflon® and Simriz®.

METER TYPES & FLUIDS COMPATIBILITY:

SP = Standard Petroleum: Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable oils, Motor Oils, Ethylene Glycol, Naptha etc.
SPA = Standard Petroleum – Aviation: Aviation Gasoline, Gasoline, Jet Fuels, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Naptha, etc.
SPD = Standard Petroleum – Ductile (Nodular) Iron: Ethanol, Methanol, Aviation Gasoline, Gasoline, Diesel, Bio-Diesel, Fuel Oils, Kerosene, Vegetable Oils, Motor Oils, Naptha, etc.
AF = All Ferrous: Industrial Chemicals, Solvents, Pesticides, Nitrogen Solutions, Fertilizer, Chlorinated Solvents, Paints, Inks, Alcohols, Adhesives, Molasses, Corn Syrup etc.
SS = Stainless Steel: Industrial Chemicals, Solvents, Nitric Acid, Phosphorus Acid, Glacial Acetic Acid, Anti-Icing Fluid, Vinegar, Fruit Juices, etc.
