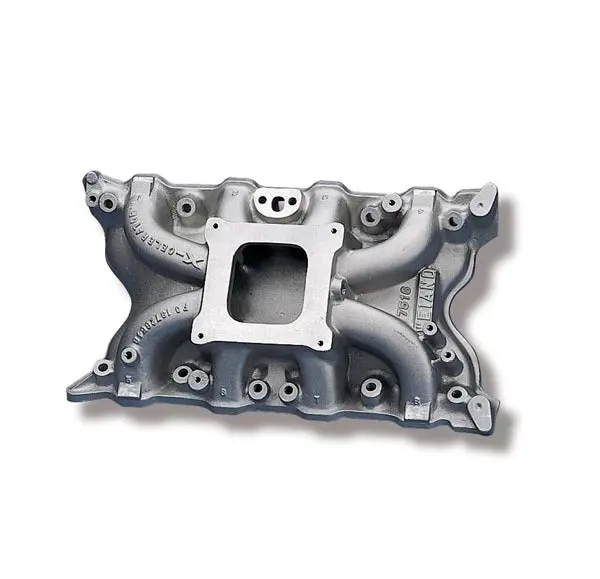

Weiand X-Celerator Aluminum Intake Manifold – Designed for Ford 351 Cleveland 2V Engines, Part Number 7516

Description

The Weiand X-CELerator Intake Manifold is engineered for high-performance applications on Ford 351 Cleveland engines with 2V cylinder heads. This single-plane, open-plenum manifold is designed to deliver exceptional mid to high RPM power, making it ideal for street, drag, marine, and oval track use.

Key Features:

• Part Number: 7516

• Engine Compatibility: Ford 351 Cleveland V8 with 2V cylinder heads

• RPM Range: 1,500–7,000 RPM

• Intake Style: Single-plane

• Carburetor Flange: 4150 square-bore

• Material: Cast aluminum

• Finish: Natural satin

• Port Dimensions: 1.95″ height x 1.34″ width

• Manifold Height: Front – 4.28″; Rear – 5.36″

• EGR Compatibility: Not equipped with EGR provisions

• Emissions Note: Not legal for sale or use on pollution-controlled vehicles; intended for off-road or racing applications only

This manifold is designed to work best with engines featuring a higher compression ratio (at least 9.5:1), a camshaft with 280° or more duration, and long-tube headers with 1-5/8″ primary tubes. A manual transmission or an automatic with a 3,000 RPM stall converter is recommended to fully utilize the manifold’s performance potential.

Installation Notes:

• Carburetor Compatibility: Accepts standard square-bore 4-barrel carburetors.

• Gaskets and Hardware: Gaskets and mounting hardware are not included and must be purchased separately.

• Hood Clearance: Due to its mid-rise design, verify hood clearance when selecting air cleaners and carburetors.
