Wichard FRX6 Friction Ring – 7mm (9/32″) Diameter (20705W)

Description

FRX6 Friction Ring – 7mm (9/32″)

Features:

• Efficient and light
• FRX Wichard thimbles are efficient, light, and reliable
• Very strong and can be used for heavy loads and semi-static lines
• FRX thimbles are designed to make your lines run smoothly with minimum wear
• They are hard anodized (50 microns) for a longer lifespan

Applications:

• Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

• Materials: Anodized aluminium
• Working load: (lb) 880 / (kg) 400
• Weight: (lb) 0.004 / (g) 2

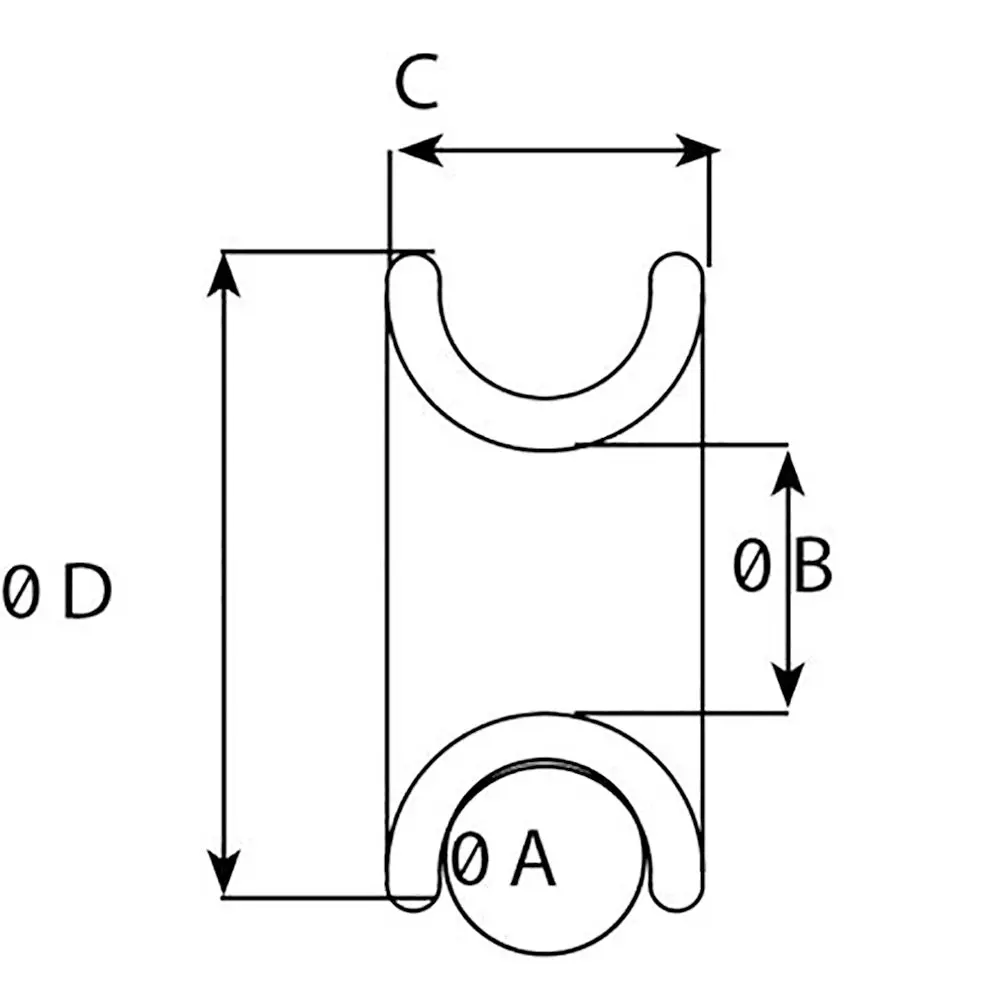

• A: (inch) 7/32″ / (mm) 5.5
• B: (inch) 9/32″ / (mm) 7
• C: (inch) 23/64″ / (mm) 9
• D diameter: (inch) 45/64″ / (mm) 18

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
