Description

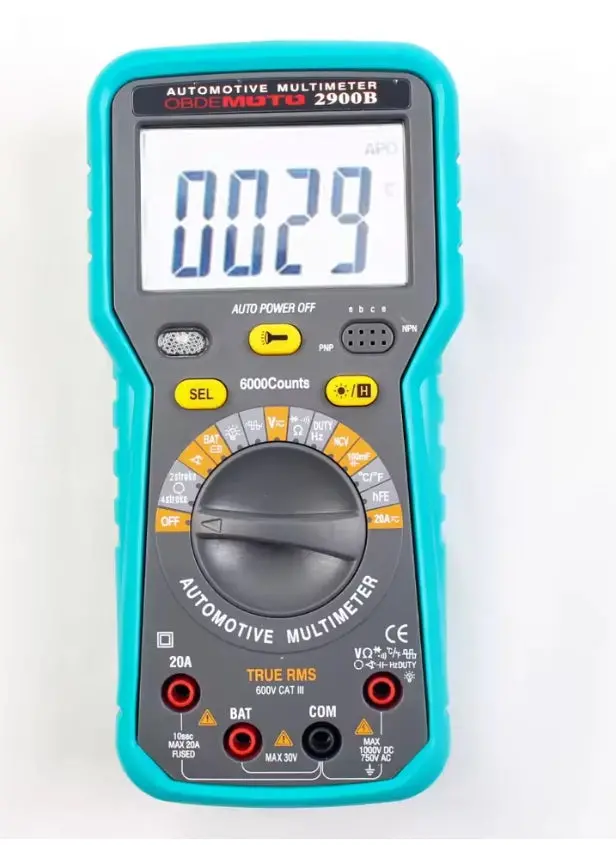

2900B AUTO Digital Car Multimeter 6000 Counts True RMS AC/DC Volt Amp Ohm Dwell Angle Rotational Speed Tester Update

Key Features

• • Portable Design with Accessories:The multimeter’s portable design, with a back bracket and magnet, aids in convenient testing on-the-go.
• • True RMS Measurement:Get precise AC voltage readings with True RMS technology, ensuring accurate results in various waveforms.
• • Mst 2900b Digital Multimeter|Mst 2900b Multimeter|Full Automatic Operation:Enjoy hassle-free measurements with the 2900B’s full automatic operation, an upgrade over manual 2900A.
• • Versatile Rotational Speed Testing:Assess engine health with 2900B’s rotational speed detection, covering 1CYL to 8CYL engines.
• • Wide Measurement Range:Measure a variety of electrical properties, from AC/DC voltage to resistance, with a 6000 Counts display.

Technical Specifications

Hign-concerned Chemical	None
Electronic	No
Item Weight	0.8kg
Item Height	10cm
Item Width	10cm
Item Length	10cm
External Testing Certification	ce
Voltage	Standard
Special Features	RPM
Model Name	MST-2900B
Software Version	New
Hardware Version	New
Brand Name	diagauto
Origin	Mainland China
Power (W)	Standard
Item Type	Multimeters & Analyzers
Material	Metal+Plastic
Technical support	Lifetime support
Warranty	One year
Function	Full Automatic Multimeter Updated from 2900A
Type	2900B AUTO Digital Car Multimeter 6000 Counts
Business type	Master Factory Store
Manufacturer	Original manufacturer of 2900B and 2900A

Product Description

2900B AUTO Digital Car Multimeter 6000 Counts True RMS AC/DC Volt Amp Ohm Dwell Angle Rotational Speed Tester Update from 2900A

Key Features:

1. Multifunction: Can accurately measure AC/DC voltage, AC/DC current, dwell angle, rotational speed, resistance, capacitance, temperature, frequency, diode, hFE, Duty Cycle, continuity, lamp, battery, positive and negative pulse.
2. Portable Design: There is a back bracket and magnet for supporting multimeter, and also can collect test probe for your convenience.
3. Easy to Use & Clear to Read: With large LCD Backlight display and flashlight, convenient to use and read data in the dark.
4. More advantages: Full symbol display, Full automatic operation, Auto power off, function select, True RMS, data hold, over range indication, full range overload protection and low voltage display, test lamp measurement, battery measurement, positive and negative pulse measurement.
5. Widely use: It’s a perfect tool for the laboratory, factory and power plant.
6. Updating: 2900B is the updated version from 2900A, definitely better than manual 2900A

Top Features:

• Full Symbol Display: Yes
• Full Automatic: Yes, better than 2900A which is manual one.
• RPM: 2 Strokes, 4 Strokes, the same function as MST-1000
  True RMS: Yes

Detailed Description:

1. This 2900B digital automotive multimeter is able to measure AC/DC voltage, AC/DC current, dwell angle, rotational speed, resistance, capacitance, temperature, frequency, diode, hFE, Duty Cycle, continuity, lamp, battery, positive and negative pulse.
2. This digital multimeter is designed to offer user better performance and higher safety rating.
3. Unique structural design make it new type of multimeter with high performance/price ratio and a best choice for the laboratory, factory and power plant.

Technical Specifications:

Model: 2900B

Display: 5999 Counts

Color: Gray+Blue

Dwell angle:

• 1CYL: 0-180.0°
• 4CYL: 0-90.0°
• 5CYL: 0-72.0°
• 6CYL: 0-60.0°
• 8CYL: 0-45.0°

Accuracy: ±(1.2%+2)

Rotational speed:

1CYL/4CYL/5CYL/6CYL/8CYL: 500~10000Turn/min±(1.2%+2)

DC Voltage	6V/60V/600V±(0.5%+3), 1000V±(0.8%+3)
AC Voltage	6V/60V/600V±(0.8%+3), 700V±(1.2%+3)

Additional Features:

• Diode Test: Yes
• hFE Test: Yes
• Continuity Testing: Yes
• Duty cycle: Yes
• Backlight: Yes
• Auto Power off: Yes
• Data Hold: Yes
• Range Select: Yes
• Over range indication: Yes

Full Symbol Display: Yes

Full Automatic: Yes

RPM: 2 Strokes, 4 Strokes, the same function as MST-1000

True RMS: Yes

Flashlight: Yes

Power: 9V Battery 6F22 (not included)

Package Information:

Product Size: 180 x 88 x 53 mm

Product Net Weight: 321g

Package Size: 21 x 15 x 5.5cm / 8.3 x 5.9 x 2.2in

Package Weight: 542g / 19.2 oz

Package list:

• 1 x Digital Multimeter
• 2 x Test Pen Cable
• 2 x Alligator clip
• 1 x Temperature Test Cable
• 1 x Rotational Speed Test Cable
• 1 x User Manual
