Petro PC Cube 3.3 Self-Bunded Fuel Tank with Integrated Pump Kit

Description

[tabs] [tab title=”SPECIFICATIONS”]

	PC Cube Tank Datasheet
	PETRO CUBE 3.3 GA
	Operations Manual
	UN Certification
	PETRO Tank Collection Catalogue 2025
	PETRO PC Cube tank Certifications
	Quality Assurance

[/tab][/tabs]

PETRO PC3.3 Cube Self Bunded Tank

Suitable for the storage and dispensing of Diesel, Biodiesel, Kerosene, Lubricants, Petrol and Waste Oil.

The PC Cube is a market-leading 110% self bunded tank, with versatile under-hatch connections and an intelligent design.

FEATURES:

• Unique tank in tank design approved to UL142 / ULCS601 / AS1940, AS1692, AS1170, AS4100, AS1554.1 / BS799 / PPG2.

• Certified Crane Lifting Points (Up to and including PC6.6)
• Removable manway for ease of maintenance.
• The outer tank will hold 110% of the inner tank’s capacity.
• UN31A/Y approved for the transport of Dangerous Goods by Road, Rail and Sea, Packaging Groups II & III. (PC0.66  – PC2.25)

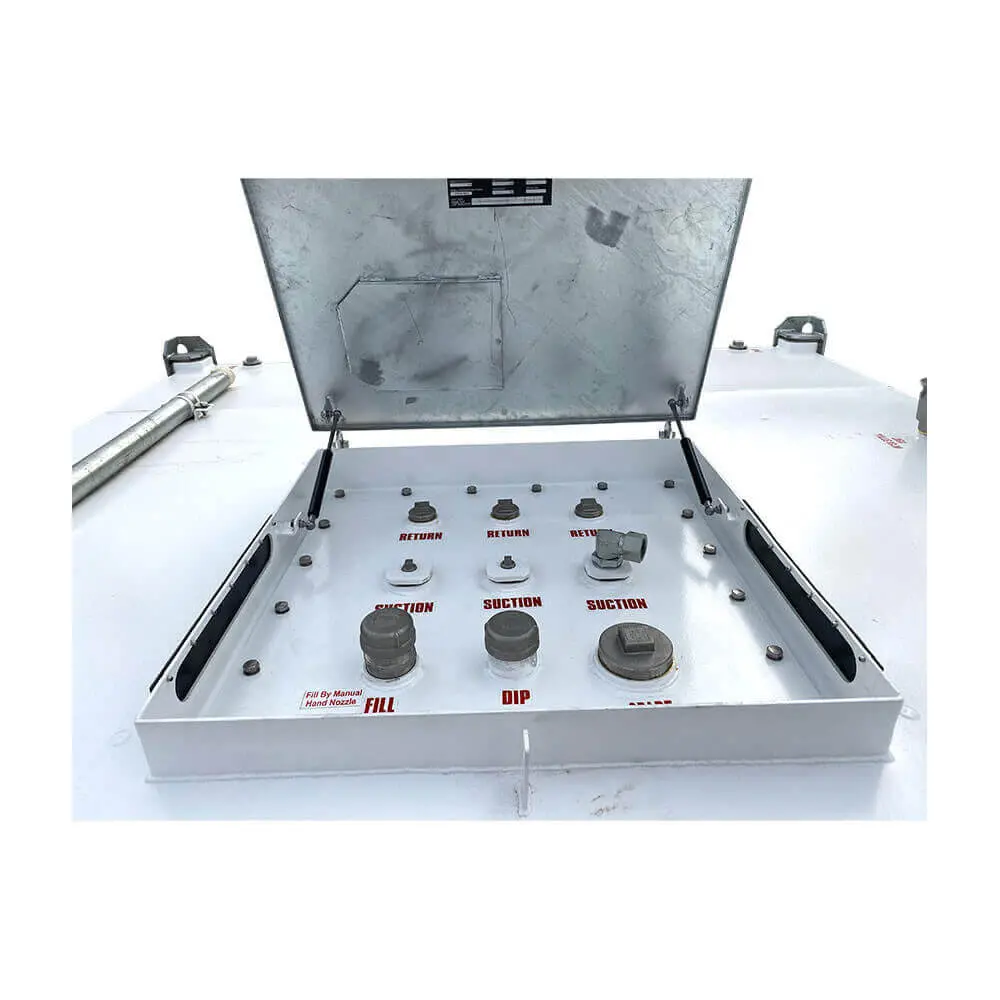

• Lockable hatch lid with access for hoses, under hatch sockets and suction spears can operate with the hatch closed.
• Additional 50mm (2”) hose entry and exit sockets on top of tank.
• Secure under-hatch generator hose suction and return points, to accommodate up to 3 generators.
• 4 x way forklift pockets.
• Incremental dipstick.
• Stackable – 3-high empty and 2-high when full.
• Supplied with all required statutory decals.

COMES WITH:

• 1 x 25mm (1”) Suction Spear
• 2 x 13mm (1/2”) Suction Spear
• 3 x 40mm (1 1/2”) Return Point
• 1 x Spare 80mm (3”) Socket
• 4 x Spare 50mm (2”) Socket Top of Tank
• 50mm (2”) Fill Point – Splash Fill Only
• Incremented Dip Stick (Select Models)
• Statutory Signage
• 4 Way Forklift Pockets
• Certified Lift Full Crane Lugs on Each Corner
• Finish Painted PETRO White Marine Specification
• Optional extra to pre-fit 1 x 50mm (2”) Overfill Valve

PRODUCT RANGE:

Code	Gross Volume (L)	Safe Fill Level (L)	External Dimensions (L x W x H) (mm)	Tare Weight (kg)
PC 3.3	3300	3000	2294 x 1546 x 1270	1096

View the full range of Self Bunded Tanks manufactured by PETRO Industrial today!

Contact PETRO industrial’s team of bulk fuel storage and dispensing specialists for more information today!
