PETRO Stainless Steel PC Cube Self Bunded Tank

The PETRO Stainless Steel PC Cube is a premium self-bunded tank, engineered for industries requiring corrosion-resistant, durable, and food-grade storage solutions. Made from high-quality 304 stainless steel, this tank is ideal for storing and dispensing liquids where hygiene and chemical resistance are critical, including food-grade ingredients, oils, cleaning solutions, chemicals, and used oil.

Designed for versatility and safety, the PC Cube features under-hatch connections and a structurally intelligent design, making it one of the most efficient and market-leading self-bunded tanks available. With full compliance to AS1692, AS1657, AS1940, UL142, and ULC-S601 standards, this tank is engineered for reliability, safety, and long-term performance.

Its certified lifting points (up to PC6.6) allow for transport while full, and its stackable design maximizes storage efficiency.

FEATURES:

• Unique tank in tank design approved to As1692, As1657, As1940, Ul142, Ulc-S601.
• Stainless Steel 304 Inner Tank and Wetted Parts
• Certified Crane Lifting Points (Up to and including PC6.6)
• Removable manway for ease of maintenance.
• The outer tank will hold 110% of the inner tank’s capacity.
• UN31A/Y approved for the transport of Dangerous Goods by Road, Rail and Sea, Packaging Groups II & III. (PC0.66 – PC2.25)
• Additional 50mm (2”) hose entry and exit sockets on top of tank.

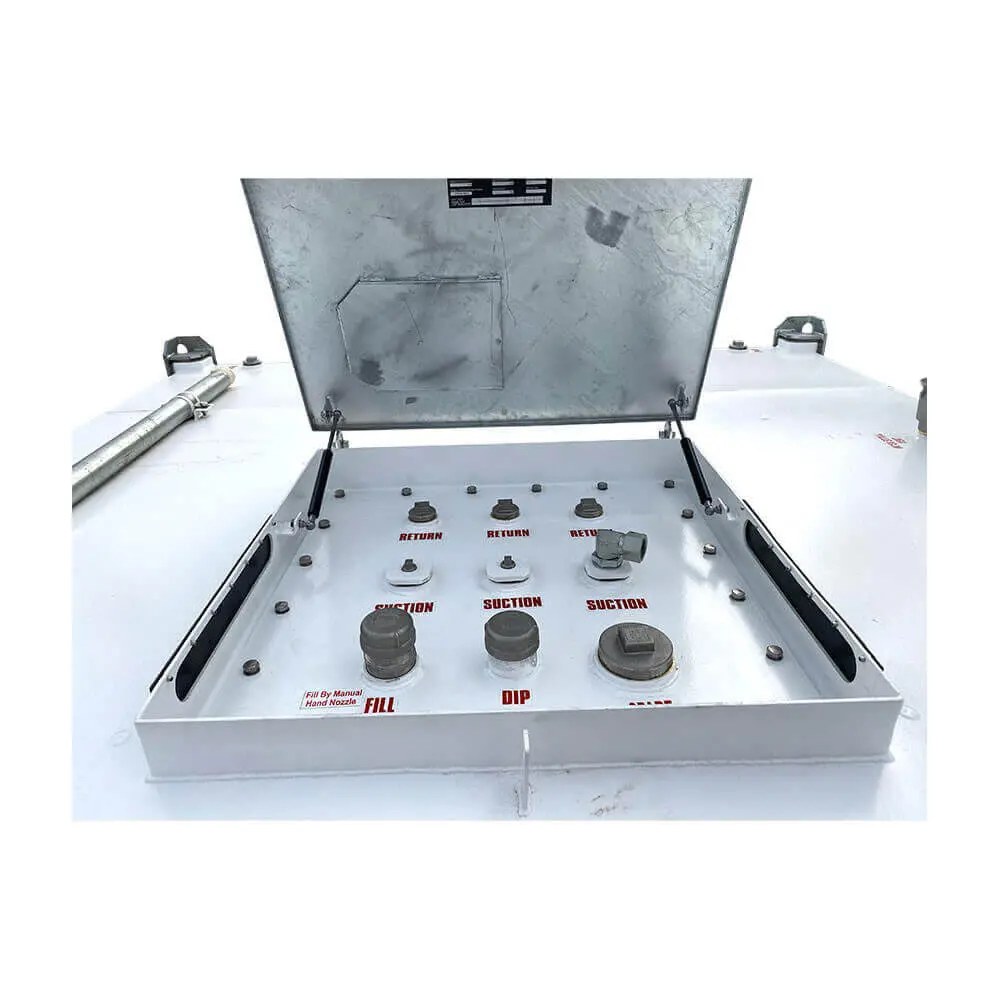

• Secure under-hatch suction and return points.
• 4 x way forklift pockets.
• Incremental dipstick.
• Stackable – 3-high empty and 2-high when full.
• Supplied with all required statutory decals.
• Movable when full.

COMES WITH:

• 1 x 25mm (1”) Suction Spear.
• 2 x 13mm (1/2”) Suction Spear.
• 3 x 40mm (1 1/2”) Return Point.
• 1 x Spare 80mm (3”) Socket.
• 4 x Spare 50mm (2”) Socket Top of Tank.
• 50mm (2”) Fill Point – Splash Fill Only.
• Incremented Dip Stick (Select Models).
• Statutory Signage.
• 4 Way Forklift Pockets.
• Certified Lift Full Crane Lugs on Each Corner (Up to and including PC6.6).
• Painted White Marine Specification.

PRODUCT RANGE:

Code	Gross Volume (L)	Safe Fill Level (L)	External Dimensions (L x W x H) (mm)	Tare Weight (kg)
PC 0.66-SS304	660	600	1374  x 1086  x 810	451
PC 1.1-SS304	1100	1000	1374 x 1086 x 1270	594
PC 2.25-SS304	2250	2000	2294 x 1086 x 1270	885
PC 3.3-SS304	3300	3000	2294 x 1546 x 1270	1096
PC 4.5-SS304	4500	4000	2294 x 2084 x 1270	1328
PC 6.6-SS304	6600	6000	2966 x 2294 x 1270	1809
PC 8.8-SS304	8800	8000	3916 x 2294 x 1270	2170
PC 11-SS304	11000	10000	4876 x 2294 x 1270	2689

The PETRO Stainless Steel PC Cube is a cutting-edge food-grade storage solution, combining strength, compliance, and versatility for industries that demand hygienic, long-lasting, and transportable liquid storage.
